| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

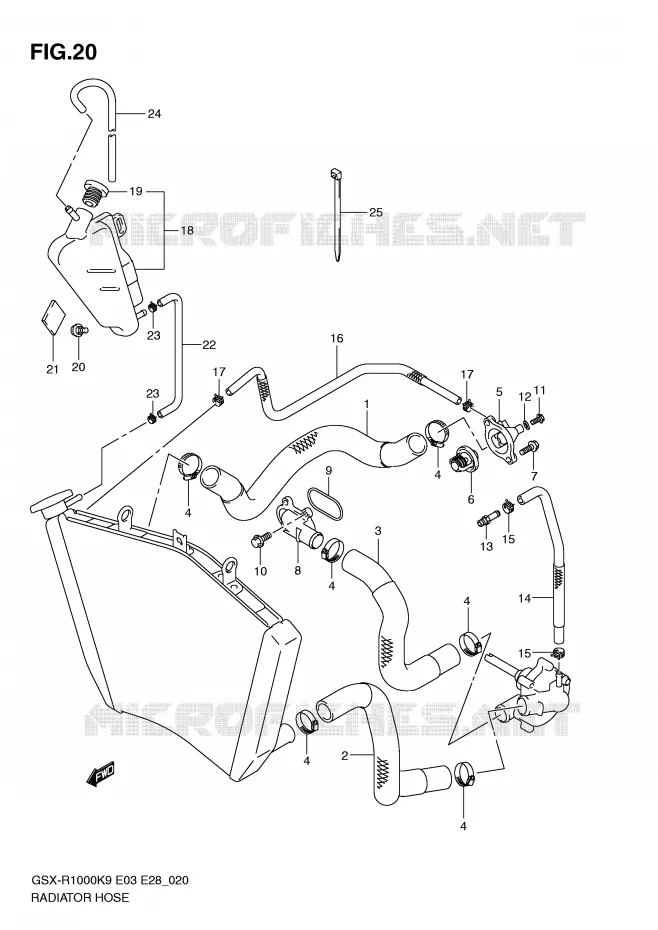

| # 1 |
17851-47H00-000 1785147H00000 1785147H00000 |
HOSE, RADIATOR INLET
|
||||
| # 2 |
17852-47H00-000 1785247H00000 1785247H00000 |
HOSE, RADIATOR OUTLET
|
||||
| # 3 |
17853-47H00-000 1785347H00000 1785347H00000 |
HOSE, CYLINDER INLET
|
||||
| # 4 |
09402-38512-000 0940238512000 0940238512000 |
CLAMP
|
||||
| # 5 |
17661-35F00-000 1766135F00000 1766135F00000 |
COVER, THERMOSTAT
|
||||
| # 6 |
17670-47H00-000 17670-47H01-0001767047H00000 |
THERMOSTAT COMP, WATER
THERMOSTAT, WATER |
||||
| # 7 |
01547-0620A-000 015470620A000 015470620A000 |
BOLT
|
||||
| # 8 |
17861-47H00-000 1786147H00000 1786147H00000 |
CONNECTOR, CYLINDER INLET
|
||||
| # 9 |
17863-47H00-000 1786347H00000 1786347H00000 |
O RING
|
||||
| # 10 |
01547-0620A-000 015470620A000 015470620A000 |
BOLT
|
||||
| # 11 |
17568-50F00-000 1756850F00000 1756850F00000 |
VIS DE FERMETURE
BOLT, THERMOSTAT COVER AIR
|
||||
| # 12 |
09168-06026-000 0916806026000 0916806026000 |
BAGUE DE JOINT 6.4X11.5X0.8
GASKET (6.4X11.5X0.8)
|
||||
| # 13 |
09362-09011-000 0936209011000 0936209011000 |
UNION WATER BYPASS HOSE
UNION, BYPASS
|
||||
| # 14 |
17854-47H00-000 1785447H00000 1785447H00000 |
HOSE, WATER BYPASS
|
||||
| # 15 |
09401-12409-000 09401-12414-0000940112409000 |
CLIP
CLIP, BYPASS HOSE
|
||||
| # 16 |
17855-47H00-000 1785547H00000 1785547H00000 |
HOSE, WATER AIR BLEED
|
||||
| # 17 |
09401-10409-000 0940110409000 0940110409000 |
BRIDE DE TUYAU 10.5MM
CLIP
|
||||
| # 18 |
17910-47H00-000 1791047H00000 1791047H00000 |
TANK ASSY, RESERVOIR
|
||||
| # 19 |
17931-02FA0-000 1793102FA0000 1793102FA0000 |
CAP, RESERVOIR TANK
CAP
|
||||
| # 20 |
09111-06085-000 0911106085000 0911106085000 |
BOLT
|
||||
| # 21 |
63191-25C00-000 6319125C00000 6319125C00000 |
CUSHION
|
||||
| # 22 |
17981-47H00-000 1798147H00000 1798147H00000 |
HOSE, RESERVOIR TANK INLET
|
||||
| # 23 |
09401-08411-000 0940108411000 |
CLIP
|
Niet beschikbaar | |||
| # 24 |
17982-47H00-000 1798247H00000 1798247H00000 |
HOSE, OVER FLOW
|
||||
| # 25 |
09407-10404-000 09407-14407-0000940710404000 |
GUIDE DE CABLE L=145
CLAMP |
