| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
11340-26F00-000 1134026F00000 1134026F00000 |
COVER COMP, CLUTCH
COVER, CLUTCH |
Niet beschikbaar | |||
| # 2 |
11971-33210-000 1197133210000 1197133210000 |
VERRE CONTROLLE D'HUILE
LENS, OIL LEVEL CHECK
|
||||
| # 3 |
11482-26F00-000 1148226F00000 1148226F00000 |
GASKET, CLUTCH COVER
|
||||
| # 4 |
04211-09149-000 0421109149000 0421109149000 |
DOUILLE
PIN
|
||||
| # 5 |
01547-06357-000 0154706357000 0154706357000 |
VIS 6X35MM CHROMEE
BOLT
|
||||
| # 5 |
09103-06214-000 0910306214000 0910306214000 |
BOLT, ST CL COV/ST IDLE GR CAP
BOLT |
||||
| # 6 |
01547-06707-000 0154706707000 0154706707000 |
VIS M6X70
BOLT
|
||||
| # 6 |
09103-06225-000 0910306225000 0910306225000 |
BOLT, ENG SPRKT COV, L70
BOLT |
||||
| # 7 |
09168-06023-000 0916806023000 0916806023000 |
BAGUE DE JOINT 5.8X13X1.2
GASKET (5.8X13X1.2)
|
||||
| # 8 |
11971-12C51-000 1197112C51000 1197112C51000 |
PLUG, OIL FILLER
|
||||
| # 9 |
09280-17003-000 0928017003000 0928017003000 |
JOINT TORIQUE 3.1X16.8
O RING
|
||||
| # 10 |
01550-08127-000 0155008127000 0155008127000 |
VIS 8X12MM
PLUG, OIL GALLERY |
||||
| # 11 |
09168-08015-000 0916808015000 0916808015000 |
BAGUE DE JOINT 8.2X14X1.6
GASKET
|
||||
| # 12 |
11351-26F00-000 1135126F00000 |
CARTER
COVER, MAGNETO |
Niet beschikbaar | |||
| # 13 |
11483-26F00-000 1148326F00000 1148326F00000 |
GASKET, MAGNETO COVER
|
||||
| # 14 |
04211-09149-000 0421109149000 0421109149000 |
DOUILLE
PIN
|
||||
| # 15 |
01547-06557-000 0154706557000 0154706557000 |
BOLT 6X55
BOLT
|
||||
| # 15 |
09103-06216-000 0910306216000 0910306216000 |
BOLT
|
||||
| # 16 |
01547-06357-000 0154706357000 0154706357000 |
VIS 6X35MM CHROMEE
BOLT
|
||||
| # 16 |
09103-06214-000 0910306214000 0910306214000 |
BOLT, ST CL COV/ST IDLE GR CAP
BOLT |
||||
| # 17 |
01547-06457-000 0154706457000 0154706457000 |
VIS 6X45MM CHROMEE
BOLT
|
||||
| # 17 |
09103-06224-000 0910306224000 0910306224000 |
BOLT, MAG COV, L45
BOLT |
||||
| # 18 |
11360-26F00-000 1136026F00000 1136026F00000 |
COVER COMP, ENG SPROCKET
COVER, ENGINE SPROCKET |
||||
| # 19 |
01547-06503-000 01547-0650B-0000154706503000 |
SCREW
BOLT |
||||
| # 20 |
09247-12104-000 0924712104000 0924712104000 |
BOUCHON DE VIDANGE
PLUG, T.D.C. |
||||
| # 21 |
09168-12002-000 0916812002000 0916812002000 |
BAGUE DE JOINT 12.1X16.2X3.7
GASKET
|
||||
| # 22 |
09259-36016-20H 092593601620H 092593601620H |
COUVERCLE A VIS, ALLUMAGE
PLUG, CRANK SHAFT HOLE
|
||||
| # 23 |
09280-33004-000 0928033004000 0928033004000 |
JOINT TORIQUE D: 3.1, ID: 32.7
O RING (ID:32.7, D:3.1)
|

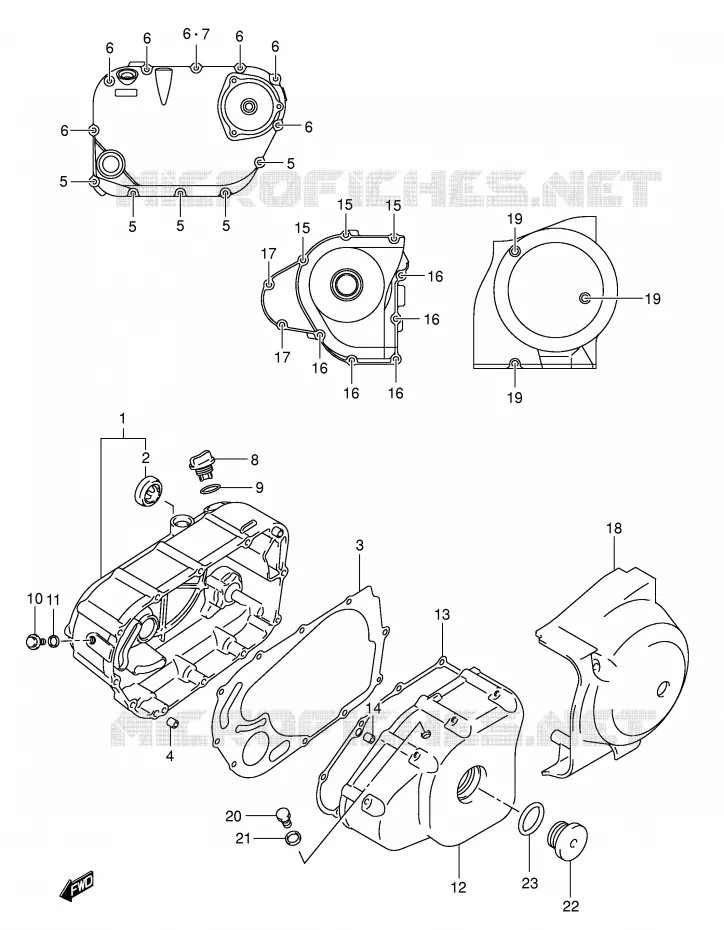

Suzuki INTRUDER
Cilinderinhoud: 125 cc Jaar: 2004 Model code VL125K4(E2)
