| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

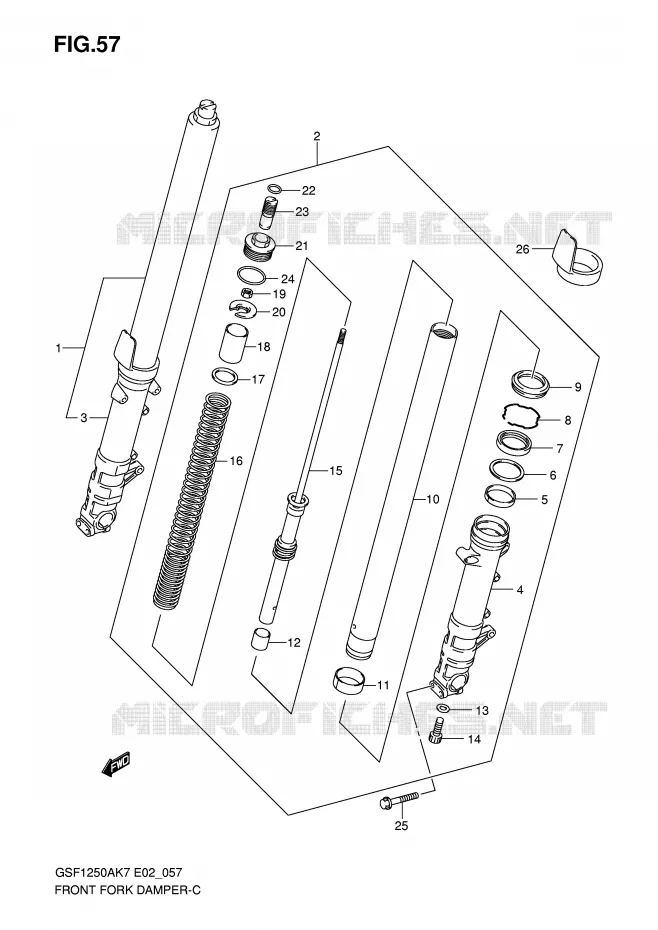

| # 1 |
51103-49G80-000 5110349G80000 5110349G80000 |
DAMPER ASSY. FRONT FORK RH
DAMPER ASSY, FRONT FORK RH (SILVER) |
||||
| # 1 |
51103-49G90-000 5110349G90000 5110349G90000 |
DAMPER ASSY. FRONT FORK RH
DAMPER ASSY, FRONT FORK RH (BLACK) |
||||
| # 1 |
51103-49GA0-000 5110349GA0000 5110349GA0000 |
DAMPER ASSY. FRONT FORK RH
DAMPER ASSY, FRONT FORK RH (BLACK) |
||||
| # 1 |
51103-49G70-000 5110349G70000 5110349G70000 |
DAMPER ASSY. FRONT FORK RH
DAMPER ASSY, FRONT FORK RH (SILVER) |
Niet beschikbaar | |||
| # 2 |
51104-49G80-000 5110449G80000 5110449G80000 |
DAMPER ASSY. FRONT FORK LH
DAMPER ASSY, FRONT FORK LH (SILVER) |
||||
| # 2 |
51104-49GA0-000 5110449GA0000 5110449GA0000 |
DAMPER ASSY. FRONT FORK LH
DAMPER ASSY, FRONT FORK LH (BLACK) |
||||
| # 2 |
51104-49G70-000 5110449G70000 5110449G70000 |
DAMPER ASSY. FRONT FORK LH
DAMPER ASSY, FRONT FORK LH (SILVER) |
Niet beschikbaar | |||
| # 2 |
51104-49G90-000 5110449G90000 5110449G90000 |
DAMPER ASSY. FRONT FORK LH
DAMPER ASSY, FRONT FORK LH (BLACK) |
Niet beschikbaar | |||
| # 3 |
51131-49G70-000 5113149G70000 5113149G70000 |
TUBE, OUTER RH (SILVER)
|
||||
| # 3 |
51131-49G90-000 5113149G90000 5113149G90000 |
TUBE, OUTER RH (BLACK)
|
||||
| # 4 |
51141-49G70-000 5114149G70000 5114149G70000 |
TUBE, OUTER LH (SILVER)
|
||||
| # 4 |
51141-49G90-000 5114149G90000 5114149G90000 |
TUBE, OUTER LH (BLACK)
|
||||
| # 5 |
51152-03F00-000 5115203F00000 5115203F00000 |
GUIDE BUSH
BUSH, GUIDE |
||||
| # 6 |
51168-17C00-000 5116817C00000 5116817C00000 |
RONDELLE DE DISTANCE
SPACER, SEAL
|
||||
| # 7 |
51153-27G00-000 5115327G00000 5115327G00000 |
SEAL, OIL
|
||||
| # 8 |
51556-38B00-000 5155638B00000 5155638B00000 |
CLIPS
RING, STOPPER
|
||||
| # 9 |
51173-27G00-000 5117327G00000 5117327G00000 |
DUST SEAL
SEAL, DUST |
||||
| # 10 |
51110-49G00-000 5111049G00000 5111049G00000 |
TUBE, INNER
|
||||
| # 11 |
51121-13E00-000 5112113E00000 5112113E00000 |
DOUILLE GUIDE DE TUBE
BUSH, SLIDE
|
||||
| # 12 |
51195-31E00-000 5119531E00000 5119531E00000 |
PIECE DE FOURCHE INT., INF.
PIECE, OIL LOCK
|
||||
| # 13 |
51148-36011-000 5114836011000 5114836011000 |
JOINT 8.2X13X1.5
GASKET
|
||||
| # 14 |
51147-48130-000 5114748130000 5114748130000 |
BOULON
BOLT
|
||||
| # 15 |
52110-49G70-000 5211049G70000 5211049G70000 |
ROD, FRONT DAMPER
ROD, DAMPER |
||||
| # 15 |
52110-49G80-000 5211049G80000 5211049G80000 |
ROD, FRONT DAMPER
ROD, DAMPER |
||||
| # 16 |
51171-49G70-000 5117149G70000 5117149G70000 |
SPRING, FRONT
|
||||
| # 17 |
51186-17C00-000 5118617C00000 5118617C00000 |
RONDELLE
SEAT, SPRING LOWER
|
||||
| # 18 |
51176-12C10-000 5117612C10000 5117612C10000 |
DOUILLE RESSORT DE FOURCHE
COLLAR, SPRING
|
||||
| # 19 |
51827-27E00-000 5182727E00000 5182727E00000 |
ECROU SPEC. TUBE DE FOURCHE
NUT
|
||||
| # 20 |
51172-17C00-000 5117217C00000 5117217C00000 |
BAGUE, GUIDE DE RESSORT
SEAT, SPRING UPPER
|
||||
| # 21 |
51189-14D00-000 5118914D00000 5118914D00000 |
VIS DE TUBE DE FOURCHE SUP.
BOLT, FORK
|
||||
| # 22 |
09280-14011-000 0928014011000 0928014011000 |
JOINT TORIQUE D:2.5, ID: 13.8
O RING (D:2.5, ID:13.8)
|
||||
| # 23 |
51185-31E00-000 5118531E00000 5118531E00000 |
ADJUSTER, SPRING
|
||||
| # 24 |
51117-17C00-000 5111717C00000 5111717C00000 |
JOINT TORIQUE
O RING
|
||||
| # 25 |
51166-03FK0-000 5116603FK0000 5116603FK0000 |
BOULON
BOLT |
||||
| # 26 |
51201-32F00-000 5120132F00000 5120132F00000 |
PROTECTOR
|
