Winkelwagen
| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
62100-46K01-019 6210046K01019 6210046K01019 |
ABSORBER ASSY, REAR SHOCK (BLAC K)
|
Niet beschikbaar | |||
| # 2 |
62120-46K01-000 6212046K01000 6212046K01000 |
.ROD SUBASSY, PISTON
|
Niet beschikbaar | |||
| # 3 |
62131-49HE0-000 6213149HE0000 6213149HE0000 |
..RING, PISTON
|
||||
| # 4 |
62152-49HE1-000 6215249HE1000 6215249HE1000 |
..O RING
|
Niet beschikbaar | |||
| # 5 |
62153-49HE1-000 6215349HE1000 6215349HE1000 |
..O RING
|
Niet beschikbaar | |||
| # 6 |
62279-49HE0-000 6227949HE0000 6227949HE0000 |
.RING, STOP
|
||||
| # 7 |
62160-46K00-000 6216046K00000 6216046K00000 |
.CYLINDER
|
Niet beschikbaar | |||
| # 8 |
51294-40400-000 5129440400000 5129440400000 |
CAP
..CAP, VALVE AIR
|
||||
| # 9 |
62130-46K00-000 6213046K00000 6213046K00000 |
..VALVE ASSY
|
||||
| # 10 |
62133-49HE0-000 6213349HE0000 6213349HE0000 |
...O RING
|
||||
| # 11 |
62170-46K00-000 6217046K00000 6217046K00000 |
..VALVE
|
||||
| # 12 |
62135-49HE0-000 6213549HE0000 6213549HE0000 |
...WASHER
|
||||
| # 13 |
62136-49HE0-000 6213649HE0000 6213649HE0000 |
...O RING
|
||||
| # 14 |
62134-49HE0-000 6213449HE0000 6213449HE0000 |
...O RING
|
||||
| # 15 |
62191-49HE0-000 6219149HE0000 6219149HE0000 |
..GUIDE, SPRING
|
||||
| # 16 |
62194-49HE0-000 6219449HE0000 6219449HE0000 |
..NUT
|
||||
| # 17 |
62273-49HE0-000 6227349HE0000 6227349HE0000 |
..BLADER
|
||||
| # 18 |
62275-49HE0-000 6227549HE0000 6227549HE0000 |
..GUIDE
|
||||
| # 19 |
62277-49HE0-000 6227749HE0000 6227749HE0000 |
..RING, STOP
|
||||
| # 20 |
62211-46K00-019 6221146K00019 6221146K00019 |
.SPRING, REAR (BLACK)
|
||||
| # 21 |
09263-16033-000 0926316033000 0926316033000 |
BEARING
.BEARING (16X22X12) |
||||
| # 22 |
62684-36F00-000 6268436F00000 6268436F00000 |
SPACER, UPPER BRG, R
.SPACER, UPPER BRG RH |
||||
| # 23 |
62685-36F00-000 6268536F00000 6268536F00000 |
SPACER, UPPER BRG, L
.SPACER, UPPER BRG LH |
||||
| # 24 |
09284-16005-000 0928416005000 0928416005000 |
SEAL
.SEAL, OIL (16X22X2.5) |
||||
| # 25 |
62221-46K00-000 6222146K00000 6222146K00000 |
.GUIDE SPRING
|
||||
| # 26 |
62222-49HE0-000 6222249HE0000 6222249HE0000 |
.GUIDE SPRING
|
||||
| # 27 |
62311-28H00-000 6231128H00000 6231128H00000 |
BOLT
BOLT, RR SHOCK ABS UPPER |
||||
| # 28 |
62221-37F30-000 6222137F30000 6222137F30000 |
VIS
BOLT, RR SHOCK ABS LOWER |
||||
| # 29 |
09159-10067-000 0915910067000 0915910067000 |
NUT
|
||||
| # 30 |
62211-46K10-019 6221146K10019 6221146K10019 |
SPRING, REAR (BLACK)
|
||||
| # 30 |
62211-46K20-019 6221146K20019 6221146K20019 |
SPRING, REAR (BLACK)
|

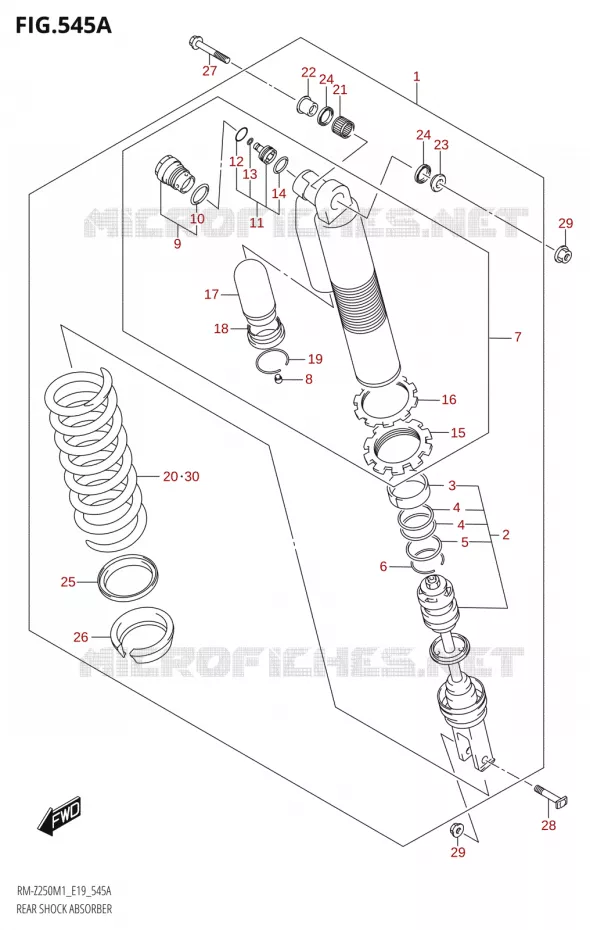

Suzuki RM-Z
Cilinderinhoud: 250 cc Jaar: 2021 Model code RM-Z250 M1 (E19)
