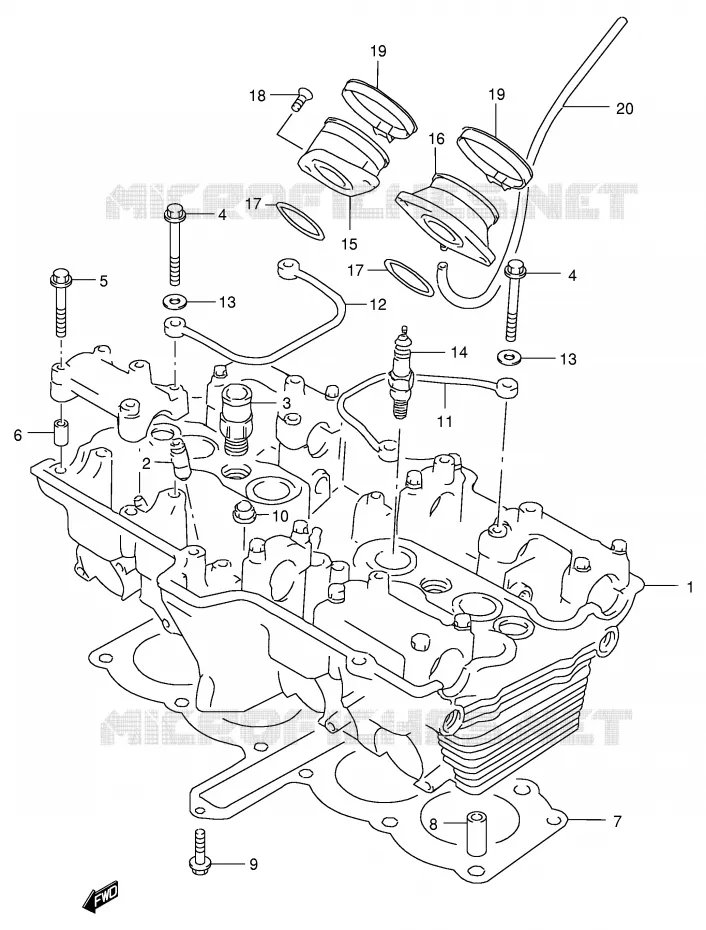

| # 1 |
11100-33C01-000 1110033C01000 1110033C01000 |
HEAD ASSY, CYLINDER
|
Niet beschikbaar | |||
| # 2 |
11115-05C70-000 1111505C70000 1111505C70000 |
GUIDE, VALVE
|
Niet beschikbaar | |||
| # 3 |
11181-32C03-000 1118132C03000 1118132C03000 |
.UNION, WATER HOSE
|
Niet beschikbaar | |||
| # 3 |
11181-32C04-000 1118132C04000 1118132C04000 |
UNION, WATER HOSE
|
Niet beschikbaar | |||
| # 4 |
09103-06165-000 0910306165000 0910306165000 |
BOLT
BOLT (6X45)
|
||||
| # 5 |
09103-06026-000 0910306026000 0910306026000 |
VIS 6X39MM
BOLT (6X39)
|
||||
| # 6 |
09206-08001-000 0920608001000 0920608001000 |
DOUILLE 6.2X8X11
PIN (8X11)
|
||||
| # 7 |
11141-32C01-000 11141-32C10-0001114132C01000 |
JOINT DE CULASSE
GASKET, CYLINDER HEAD |
||||
| # 8 |
04211-11189-000 0421111189000 0421111189000 |
DOUILLE
PIN
|
||||
| # 9 |
01517-06254-000 01550-0625B-0000151706254000 |
BOLT
BOLT, CENTER |
||||
| # 9 |
01550-06253-000 01550-0625A-0000155006253000 |
BOLT
|
||||
| # 10 |
08313-20083-000 08313-2008B-0000831320083000 |
NUT
|
||||
| # 10 |
08313-21087-000 08313-20087-0000831321087000 |
ECROU 8MM
NUT, LOWER |
||||
| # 11 |
12961-30B01-000 1296130B01000 1296130B01000 |
TUYAUTERIE
PIPE, OIL CYLINDER HEAD, LH |
||||
| # 12 |
12961-33C10-000 1296133C10000 1296133C10000 |
PIPE, OIL CYLINDER HEAD, R
PIPE, OIL CYLINDER HEAD, RH |
Niet beschikbaar | |||
| # 13 |
08322-01063-000 0832201063000 |
WASHER
|
Niet beschikbaar | |||
| # 14 |
09482-00410-000 0948200410000 0948200410000 |
BOUGIE CR9EK
SPARK PLUG (NGK, CP9EK)
|
||||
| # 14 |
09482-00412-000 0948200412000 0948200412000 |
BOUGIE CR8EK
SPARK PLUG (NGK, CR8EK)
|
||||
| # 14 |
09482-00415-000 0948200415000 0948200415000 |
--> 09482-00414
SPARK PLUG (ND, U22ETR) |
||||
| # 14 |
09482-00462-000 0948200462000 0948200462000 |
BOUGIE CR10EK
SPARK PLUG (NGK, CR10EK)
|
||||
| # 14 |
09482-00414-000 0948200414000 0948200414000 |
SPARK PLUG (NGK, CR7EK)
|
Niet beschikbaar | |||
| # 15 |
13101-33C00-000 1310133C00000 1310133C00000 |
PIPE, INTAKE
|
Niet beschikbaar | |||
| # 15 |
13101-33C10-000 1310133C10000 1310133C10000 |
PIPE, INTAKE
|
Niet beschikbaar | |||
| # 16 |
13102-33C00-000 1310233C00000 1310233C00000 |
PIPE, INTAKE, NO.2
PIPE, INTAKE |
Niet beschikbaar | |||
| # 16 |
13102-33C10-000 1310233C10000 1310233C10000 |
PIPE, INTAKE
|
Niet beschikbaar | |||
| # 17 |
09280-36002-000 09280-36004-0000928036002000 |
.O RING
|
||||
| # 18 |
02112-36163-000 02112-3616B-0000211236163000 |
SCREW
|
||||
| # 19 |
09402-52208-000 0940252208000 0940252208000 |
BRIDE 52MM
CLAMP
|
||||
| # 20 |
09352-50903-300 09352-50006-6000935250903300 |
HOSE, 5X9X600
DISCONTINUED |
