Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
---|---|---|---|---|---|---|
# 1 |
61000-44401-019 6100044401019 6100044401019 |
BRAS OSCILLANT GSX250EZ/ESD
REAR SWINGING ARM SET (BLACK) |
Niet beschikbaar | |||
# 2 |
09263-22017-000 0926322017000 0926322017000 |
ROULEMENT A AIGUILLE 22X29X30
BEARING ![]() |
||||
# 3 |
61281-44001-000 6128144001000 6128144001000 |
PIECE DE DISTANCE
SPACER |
Niet beschikbaar | |||
# 4 |
61251-45001-000 6125145001000 6125145001000 |
DOUILLE BRAS OSCILLANT
SPACER ![]() |
||||
# 5 |
61211-44400-000 6121144400000 6121144400000 |
AXE BRAS OSCILLANT
SHAFT, PIVOT |
Niet beschikbaar | |||
# 6 |
08319-21148-000 08319-2114A-0000831921148000 |
NUT
|
||||
# 7 |
08322-11148-000 08322-01147-0000832211148000 |
WASHER
WASHER, UPPER INNER |
||||
# 8 |
61262-45002-000 6126245002000 6126245002000 |
COUVERCLE
COVER, DUST SEAL ![]() |
||||
# 9 |
09160-14020-000 0916014020000 0916014020000 |
RONDELLE 14.2X34X1
WASHER ![]() |
||||
# 10 |
64311-44200-019 6431144200019 6431144200019 |
TRINGLE SUPPORT DE FREIN
TORQUE LINK, REAR (BLACK) |
Niet beschikbaar | |||
# 11 |
09111-10010-000 0911110010000 0911110010000 |
VIS
BOLT, FRONT ![]() |
Niet beschikbaar | |||
# 12 |
08321-21107-000 08321-01107-0000832121107000 |
BAGUE DE RESSORT 10MM
LOCK WASHER |
||||
# 13 |
08310-22107-000 08310-00107-0000831022107000 |
ECROU 10MM
NUT 10MM |
||||
# 14 |
04111-20208-000 04111-2020A-0000411120208000 |
COTTER PIN. ROD END
COTTER PIN |
||||
# 15 |
09101-10003-000 0910110003000 0910110003000 |
VIS
BOLT, REAR ![]() |
Niet beschikbaar | |||
# 16 |
08321-21107-000 08321-01107-0000832121107000 |
BAGUE DE RESSORT 10MM
LOCK WASHER |
||||
# 17 |
08310-11108-000 08310-00107-0000831011108000 |
ECROU 10MM
.NUT |
||||
# 18 |
04111-20208-000 04111-2020A-0000411120208000 |
COTTER PIN. ROD END
COTTER PIN |

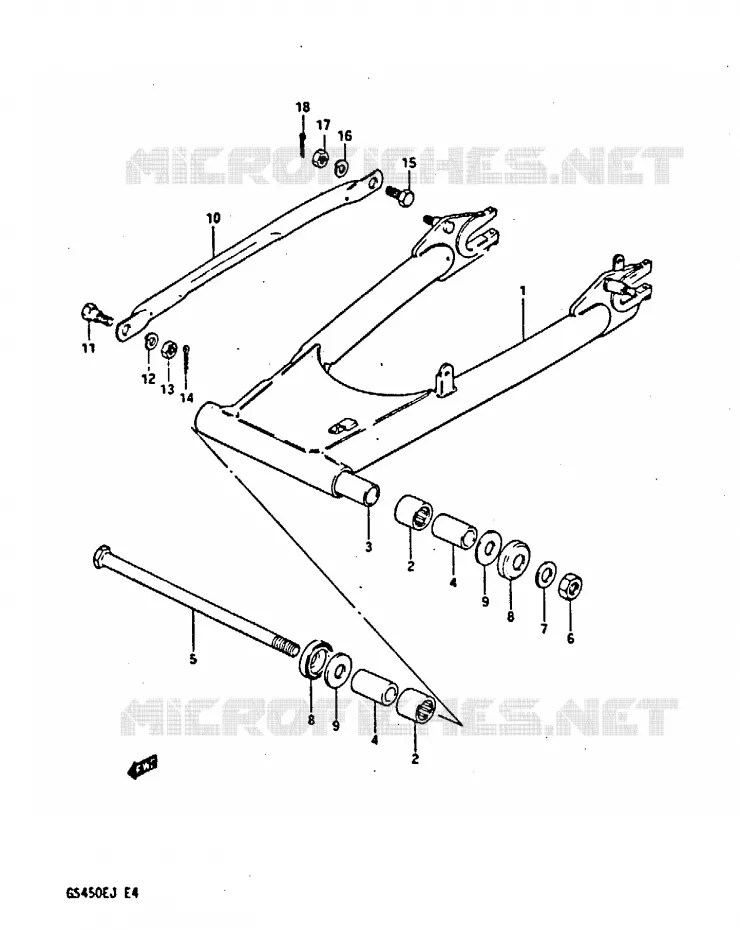

Suzuki GS-S
Cilinderinhoud: 450 cc Jaar: 1988 Model code GS450SJ(E / F / G / H / J)
