| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
13200-35G50-000 1320035G50000 1320035G50000 |

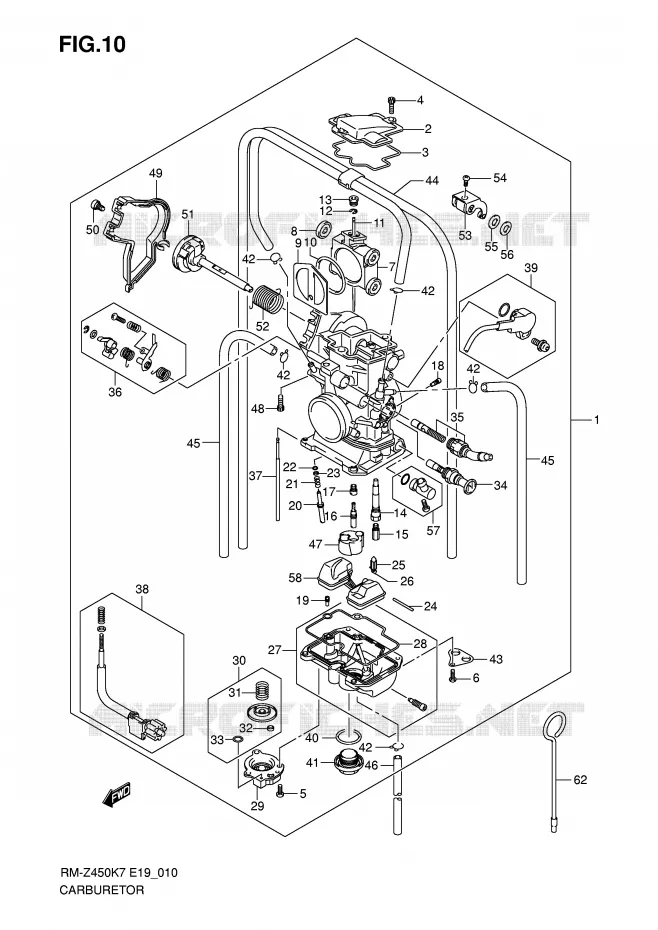

CARBURETOR ASSY
|
||||
| # 2 |
13261-35G00-000 1326135G00000 1326135G00000 |
TOP
|
||||
| # 3 |
13266-35G00-000 1326635G00000 1326635G00000 |
O RING
|
||||
| # 4 |
13612-35G00-000 13612-29F10-0001361235G00000 |
VIS 4X12MM
BOLT |
||||
| # 5 |
13602-43E00-000 13602-43E00-0001360243E00000 |
SCREW
|
||||
| # 6 |
13602-35G00-000 1360235G00000 1360235G00000 |
SCREW
|
||||
| # 7 |
13551-35G10-000 1355135G10000 1355135G10000 |
THROTTLE VALVE
|
||||
| # 8 |
13570-29F00-000 1357029F00000 1357029F00000 |
BEARING
|
||||
| # 9 |
13555-35G00-000 1355535G00000 1355535G00000 |
FLOATING VALVE
|
||||
| # 10 |
13559-29F00-000 1355929F00000 1355929F00000 |
LIP SEAL
|
||||
| # 11 |
13383-35GF0-000 1338335GF0000 1338335GF0000 |
NEEDLE. JET (NKZT)
NEEDLE, JET (NKYT) |
||||
| # 12 |
13394-29F00-000 1339429F00000 1339429F00000 |
BAR CLIP
|
||||
| # 13 |
13600-35G00-000 1360035G00000 1360035G00000 |
SCREW SET, JET NEEDLE
|
||||
| # 14 |
13342-35G10-000 1334235G10000 1334235G10000 |
MAIN, NOZZLE
|
||||
| # 15 |
09491-35009-000 0949135009000 0949135009000 |
GICLEUR 175 RM125/250
JET, MAIN, 175 |
||||
| # 16 |
09492-42019-000 0949242019000 0949242019000 |
GICLEUR RALENTI (42) RM250V
JET, SLOW, 42 |
||||
| # 17 |
09492-35G00-000 0949235G00000 0949235G00000 |
JET, STARTER
|
||||
| # 18 |
09492-35G10-000 0949235G10000 0949235G10000 |
JET, SLOW AIR
|
||||
| # 19 |
09492-35G30-000 0949235G30000 0949235G30000 |
JET, ACC
|
||||
| # 20 |
13279-29F00-000 1327929F00000 1327929F00000 |
SCREW, ADJUST
|
||||
| # 21 |
13271-29F00-000 1327129F00000 1327129F00000 |
SPRING
|
||||
| # 22 |
13295-29F00-000 13295-26E00-0001329529F00000 |
O RING
|
||||
| # 23 |
13291-29F00-000 13291-26E00-0001329129F00000 |
WASHER
|
||||
| # 24 |
13254-26E00-000 1325426E00000 1325426E00000 |
PIN, FLOAT
|
||||
| # 25 |
13370-29F00-000 1337029F00000 1337029F00000 |
POINTEAU
VALVE, FLOAT |
||||
| # 26 |
13375-26E00-000 1337526E00000 1337526E00000 |
CLIP
|
||||
| # 27 |
13250-35G10-000 1325035G10000 1325035G10000 |
FLOAT CHAMBER BODY SET
|
||||
| # 28 |
13251-35G00-000 1325135G00000 1325135G00000 |
O RING
|
||||
| # 29 |
13488-29F00-000 1348829F00000 1348829F00000 |
COUVERCLE DE RESSORT, CARBU
COVER |
||||
| # 30 |
13480-35G00-000 1348035G00000 1348035G00000 |
DIAPHRAGM SET
|
||||
| # 31 |
13497-14F00-000 13497-14F01-0001349714F00000 |
U RING
|
||||
| # 32 |
13494-15F00-000 1349415F00000 1349415F00000 |
SPRING
|
||||
| # 33 |
13673-26E10-000 1367326E10000 1367326E10000 |
JOINT TORIQUE
O RING
|
||||
| # 34 |
13410-35G20-000 1341035G20000 1341035G20000 |
STARTER VALVE
|
||||
| # 35 |
13410-35G30-000 1341035G30000 1341035G30000 |
STARTER VALVE
|
||||
| # 36 |
13490-35G10-000 1349035G10000 1349035G10000 |
LEVER SET, PUMP
|
||||
| # 37 |
13487-35G00-000 1348735G00000 1348735G00000 |
ROD
|
||||
| # 38 |
13270-35G00-000 1327035G00000 1327035G00000 |
SCREW SET
|
||||
| # 39 |
13580-35G00-000 1358035G00000 1358035G00000 |
SENSOR SET, THROTTLE
|
||||
| # 40 |
13246-28E00-000 1324628E00000 1324628E00000 |
JOINT TORIQUE, VIS VIDANGE
O RING |
||||
| # 41 |
13247-28E00-000 1324728E00000 1324728E00000 |
VIS DE VIDANGE
BOLT, DRAIN |
||||
| # 42 |
09401-06101-000 0940106101000 0940106101000 |
CLIPS
CLIP
|
||||
| # 43 |
13693-36E00-000 1369336E00000 1369336E00000 |
GUIDE DE TUYAU A ESSENCE
PLATE |
||||
| # 44 |
13680-35G00-000 1368035G00000 1368035G00000 |
PIPE SET, BOWL VENT
|
||||
| # 45 |
13686-35G00-000 1368635G00000 1368635G00000 |
PIPE
|
||||
| # 46 |
13684-35G00-000 1368435G00000 1368435G00000 |
PIPE
|
||||
| # 47 |
13257-35G00-000 1325735G00000 1325735G00000 |
PLATE, BUFFER
|
||||
| # 48 |
13296-35G00-000 1329635G00000 1329635G00000 |
SCREW
|
||||
| # 49 |
13311-35G00-000 1331135G00000 1331135G00000 |
COVER
|
||||
| # 50 |
13312-35G00-000 1331235G00000 1331235G00000 |
BOLT
|
||||
| # 51 |
13550-35G01-000 1355035G01000 1355035G01000 |
THROTTLE SHAFT
|
||||
| # 52 |
13573-35G00-000 1357335G00000 1357335G00000 |
COIL SPRING
SPRING |
||||
| # 53 |
13564-35G00-000 1356435G00000 1356435G00000 |
LINK ARM COMP
LINK ARM |
||||
| # 54 |
13605-35G00-000 1360535G00000 1360535G00000 |
SCREW
|
||||
| # 55 |
13572-29F00-000 1357229F00000 1357229F00000 |
WASHER
|
||||
| # 56 |
13574-35G00-000 1357435G00000 1357435G00000 |
WASHER
|
||||
| # 57 |
13670-35G00-000 1367035G00000 1367035G00000 |
JOINT SET
|
||||
| # 58 |
13240-35G00-000 1324035G00000 1324035G00000 |
FLOAT COMP
FLOAT |
||||
| # 59 |
09491-30018-000 0949130018000 0949130018000 |
GICLEUR PRINCIPALE 150
JET, MAIN (150) |
||||
| # 59 |
09491-30019-000 0949130019000 0949130019000 |
GICLEUR PRINCIPALE 152
JET, MAIN (152) |
||||
| # 59 |
09491-31012-000 0949131012000 0949131012000 |
GICLEUR PRINCIPALE 155
JET, MAIN (155) |
||||
| # 59 |
09491-31013-000 0949131013000 0949131013000 |
GICLEUR PRINCIPALE 158
JET, MAIN (158) |
||||
| # 59 |
09491-32010-000 0949132010000 0949132010000 |
GICLEUR PRINCIPALE 160
JET, MAIN (160) |
||||
| # 59 |
09491-32011-000 0949132011000 0949132011000 |
GICLEUR PRINCIPALE 162
JET, MAIN (162) |
||||
| # 59 |
09491-33009-000 0949133009000 0949133009000 |
GICLEUR PRINCIPALE 165
JET, MAIN (165) |
||||
| # 59 |
09491-33010-000 0949133010000 0949133010000 |
GICLEUR PRINCIPALE 168
JET, MAIN (168) |
||||
| # 59 |
09491-34010-000 0949134010000 0949134010000 |
GICLEUR 170 RM125/250
JET, MAIN (170) |
||||
| # 59 |
09491-34011-000 0949134011000 0949134011000 |
GICLEUR 172 RM125/250
JET, MAIN (172) |
||||
| # 59 |
09491-35009-000 0949135009000 0949135009000 |
GICLEUR 175 RM125/250
JET, MAIN (175) |
||||
| # 59 |
09491-35010-000 0949135010000 0949135010000 |
GICLEUR 178 RM125/250
JET, MAIN (178) |
||||
| # 59 |
09491-36008-000 0949136008000 0949136008000 |
GICLEUR 180 RM125/250
JET, MAIN (180) |
||||
| # 59 |
09491-37008-000 0949137008000 0949137008000 |
GICLEUR 185 RM125/250
JET, MAIN (185) |
||||
| # 59 |
09491-38011-000 0949138011000 0949138011000 |
GICLEUR 190 RM125/250
JET, MAIN (190) |
||||
| # 60 |
09492-35019-000 0949235019000 0949235019000 |
GICLEUR RALENTI 35
JET, SLOW (35) |
||||
| # 60 |
09492-40022-000 0949240022000 0949240022000 |
GICLEUR RALENTI 40
JET, SLOW (40) |
||||
| # 60 |
09492-42019-000 0949242019000 0949242019000 |
GICLEUR RALENTI (42) RM250V
JET, SLOW (42) |
||||
| # 60 |
09492-45032-000 0949245032000 0949245032000 |
GICLEUR RALENTI 45
JET, SLOW (45) |
||||
| # 60 |
09492-48013-000 0949248013000 0949248013000 |
GICLEUR RALENTI (48) RM250V
JET, SLOW (48) |
||||
| # 60 |
09492-50023-000 0949250023000 0949250023000 |
GICLEUR RALENTI 50
JET, SLOW (50) |
||||
| # 60 |
09492-52011-000 0949252011000 0949252011000 |
GICLEUR RALENTI 52
JET, SLOW (52) |
||||
| # 60 |
09492-55017-000 0949255017000 0949255017000 |
GICLEUR RALNETI 55
JET, SLOW (55) |
||||
| # 60 |
09492-58001-000 0949258001000 0949258001000 |
GICLEUR RALENTI (58) RM/T-V
JET, SLOW (58) |
||||
| # 60 |
09492-60016-000 0949260016000 0949260016000 |
GICLEUR RALENTI (60)
JET, SLOW (60) |
||||
| # 61 |
13383-35GA0-000 1338335GA0000 1338335GA0000 |
NEEDLE, JET (NKYP)
|
||||
| # 61 |
13383-35GB0-000 1338335GB0000 1338335GB0000 |
NEEDLE, JET (NKZR)
|
||||
| # 61 |
13383-35GC0-000 1338335GC0000 1338335GC0000 |
NEEDLE, JET (NKYS)
|
||||
| # 61 |
13383-35GE0-000 1338335GE0000 1338335GE0000 |
NEEDLE, JET (NKYT)
|
||||
| # 61 |
13383-35GF0-000 1338335GF0000 1338335GF0000 |
NEEDLE, JET (NKZT)
|
||||
| # 61 |
13383-35GG0-000 1338335GG0000 1338335GG0000 |
NEEDLE, JET (NKYU)
|
||||
| # 61 |
13383-35GH0-000 1338335GH0000 1338335GH0000 |
NEEDLE, JET (NKZU)
|
||||
| # 61 |
13383-35GJ0-000 1338335GJ0000 1338335GJ0000 |
NEEDLE, JET (NKYV)
|
||||
| # 61 |
13383-35GK0-000 1338335GK0000 1338335GK0000 |
NEEDLE, JET (NKZV)
|
||||
| # 61 |
13383-35GD0-000 1338335GD0000 1338335GD0000 |
NEEDLE, JET (NKZS)
|
Niet beschikbaar | |||
| # 62 |
13220-35G00-000 1322035G00000 1322035G00000 |
HOLDER, JET NEEDLE
|
