| # 1 |
11100-26E00-000 1110026E00000 |

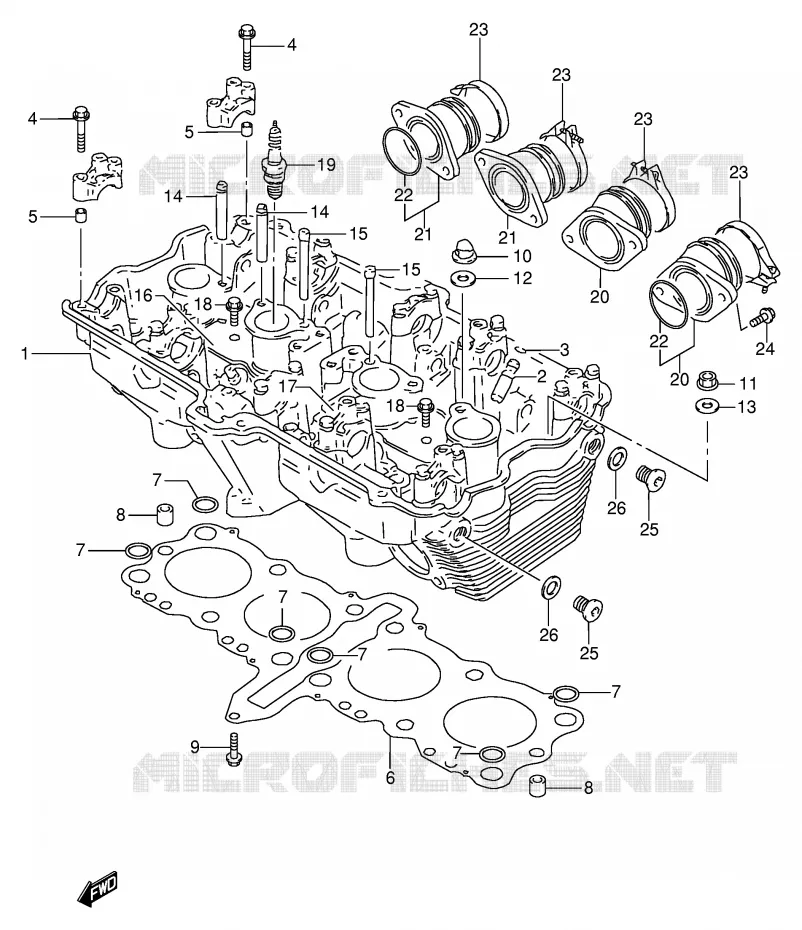

HEAD ASSY, CYLINDER
|
Niet beschikbaar | |||
| # 2 |
11115-27A70-000 11116-06B70-0001111527A70000 |
VALVE GUIDE
GUIDE, VALVE |
||||
| # 3 |
09381-10004-000 0938110004000 0938110004000 |
CIRCLIP
RING, VALVE GUIDE
|
||||
| # 4 |
09103-06026-000 0910306026000 0910306026000 |
VIS 6X39MM
BOLT (6X39)
|
||||
| # 5 |
09206-08001-000 0920608001000 0920608001000 |
DOUILLE 6.2X8X11
PIN
|
||||
| # 6 |
11141-19C03-000 1114119C03000 1114119C03000 |
GASKET, CYLINDER HEAD
|
||||
| # 7 |
09280-12013-000 0928012013000 0928012013000 |
JOINT TORIQUE D: 2.6, ID: 12.1
O RING (D:2.6, ID:12.1)
|
||||
| # 8 |
04211-11189-000 0421111189000 0421111189000 |
DOUILLE
PIN
|
||||
| # 9 |
01550-06303-000 01550-0630A-0000155006303000 |
BOLT
|
||||
| # 10 |
09159-10054-000 0915910054000 0915910054000 |
ECROU 10MM
NUT
|
||||
| # 11 |
08316-10103-000 08316-1010B-0000831610103000 |
NUT
|
||||
| # 12 |
09168-10031-000 0916810031000 0916810031000 |
BAGUE DE JOINT 10.2X20X2.3
GASKET
|
||||
| # 13 |
09160-10060-000 09160-10039-0000916010060000 |
RONDELLE 10.5X22X2.3
WASHER (10.5X22X2.3) |
||||
| # 14 |
11131-27A00-000 1113127A00000 1113127A00000 |
TUYAU D'HUILE
PIPE, OIL NO.1, 2
|
||||
| # 15 |
11133-27A00-000 1113327A00000 1113327A00000 |
TUYAU D'HUILE
PIPE, OIL NO.3
|
||||
| # 16 |
11135-27A02-000 1113527A02000 1113527A02000 |
TOLE D'HUILE DROITE
PLATE, OIL PIPE RH
|
Niet beschikbaar | |||
| # 17 |
11136-27A02-000 1113627A02000 1113627A02000 |
TOLE D'HUILE GAUCHE
PLATE, OIL PIPE LH
|
||||
| # 18 |
01550-06123-000 01550-0612B-0000155006123000 |
BOLT
|
||||
| # 19 |
09482-00410-000 0948200410000 0948200410000 |
BOUGIE CR9EK
SPARK PLUG (NGK, CR9EK)
|
||||
| # 19 |
09482-00412-000 0948200412000 0948200412000 |
BOUGIE CR8EK
SPARK PLUG (NGK, CR8EK)
|
||||
| # 19 |
09482-00462-000 0948200462000 0948200462000 |
BOUGIE CR10EK
SPARK PLUG (NGK, CR10EK)
|
||||
| # 20 |
13101-26E01-000 13101-26E02-0001310126E01000 |
PIPE GSF600
PIPE, INTAKE LH
|
||||
| # 21 |
13103-26E01-000 13103-26E02-0001310326E01000 |
PIPE ASSY, INTAKE, NO.3
PIPE, INTAKE RH
|
||||
| # 22 |
09280-40010-000 09280-40020-0000928040010000 |
O RING (D:2.4, ID:39.7)
|
||||
| # 23 |
09402-48208-000 0940248208000 0940248208000 |
BRIDE 48MM
CLAMP
|
||||
| # 24 |
07120-06163-000 07120-06167-0000712006163000 |
BOLT
SCREW |
||||
| # 25 |
09248-14010-000 0924814010000 0924814010000 |
BOUCHON VIDANGE 14X12MM
PLUG
|
||||
| # 26 |
09168-14002-000 0916814002000 0916814002000 |
BAGUE DE JOINT 13.8X18.8X4.8MM
GASKET
|
