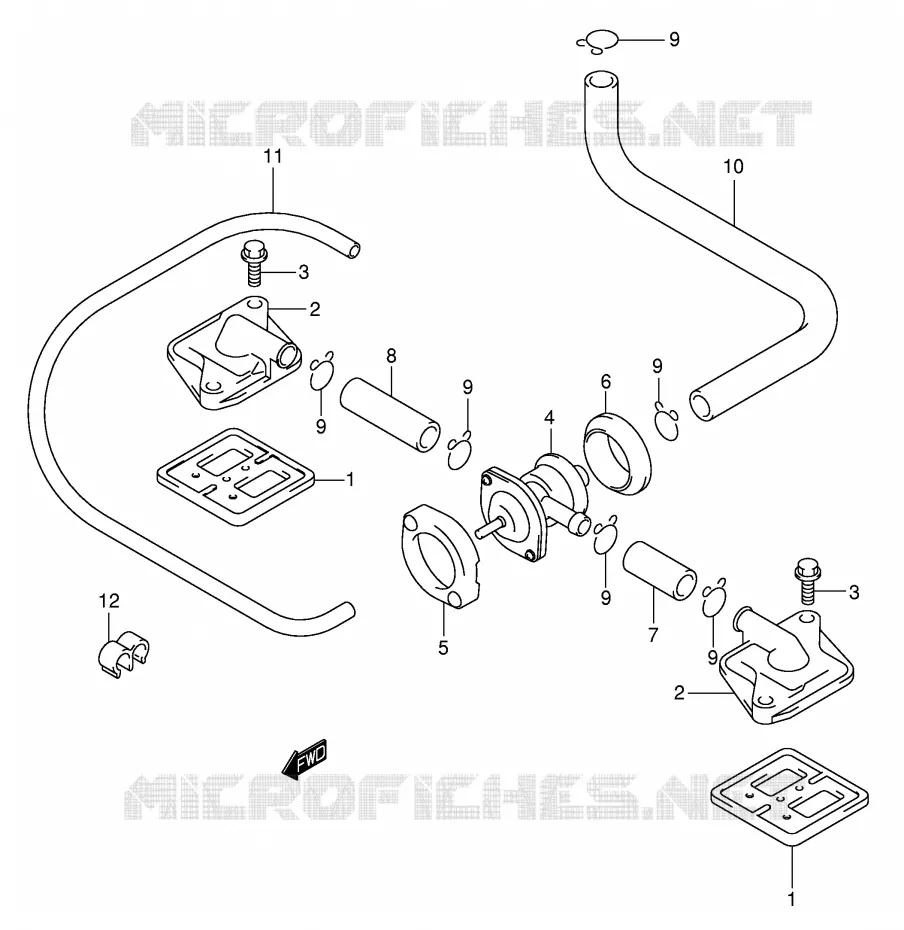

| # 1 |
18450-35F00-000 1845035F00000 1845035F00000 |
VALVE ASSY, 2ND AIR REED
|
Niet beschikbaar | |||
| # 2 |
18531-35F00-000 1853135F00000 1853135F00000 |
COVER, 2ND AIR REED VALVE
COVER, REED VALVE |
||||
| # 2 |
18531-35F10-000 1853135F10000 1853135F10000 |
REED VALVE COVER
COVER, REED VALVE |
||||
| # 3 |
09103-06217-000 09103-06201-0000910306217000 |
BOLT, 6X20
BOLT |
||||
| # 4 |
18510-35F00-000 1851035F00000 1851035F00000 |
VALVE ASSY, AIR CUT
|
||||
| # 5 |
18516-35F00-000 1851635F00000 1851635F00000 |
CUSHION, AIR CUT VALVE UPR
CUSHION, AIR CUT VALVE UPPER |
||||
| # 6 |
18517-35F00-000 1851735F00000 1851735F00000 |
CUSHION, AIR CUT VALVE LWR
CUSHION, AIR CUT VALVE LOWER |
||||
| # 7 |
09355-11165-600 0935511165600 0935511165600 |
HOSE, 11X16X600
HOSE, LH (11X16X600)
|
||||
| # 8 |
09355-11165-600 0935511165600 0935511165600 |
HOSE, 11X16X600
HOSE, RH (11X16X600)
|
||||
| # 9 |
09401-15101-000 0940115101000 0940115101000 |
CLIP, BREATHER TUBE
CLIP
|
||||
| # 10 |
18711-35F00-000 1871135F00000 1871135F00000 |
HOSE, 2ND AIR CLNR
HOSE, 2ND AIR CLEANER |
||||
| # 11 |
09355-35755-600 09355-35007-6000935535755600 |
HOSE (3.5X7.5X600)
HOSE, VACUUM (3.5X7.5X600)
|
||||
| # 12 |
09408-00033-000 0940800033000 0940800033000 |
CLAMP
|
Niet beschikbaar |
