Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
---|---|---|---|---|---|---|
# 1 |
44100-14J40-YPA 44100-14J42-YPA4410014J40YPA |
FASTENER, FUEL TANK COVER
TANK ASSY, FUEL (WHITE) TANK ASSY, FUEL GSX-R600/L2 |
||||
# 1 |
44100-14J40-YPA 44572-14J00-0004410014J40YPA |
FASTENER, FUEL TANK COVER
TANK ASSY, FUEL (WHITE) |
||||
# 1 |
44100-14J40-YSF 4410014J40YSF 4410014J40YSF |
KIT44100-14J42-YSF
TANK ASSY, FUEL (BLUE) |
Niet beschikbaar | |||
# 1 |
44100-14J40-YVB 4410014J40YVB |
KIT2221
TANK ASSY, FUEL (BLACK) |
Niet beschikbaar | |||
# 2 |
44200-16850-000 44200-16851-0004420016850000 |
CAP SET, FUEL TANK FILLER
CAP SET, FUEL TANK |
||||
# 3 |
09106-05017-000 0910605017000 0910605017000 |
VIS 5X20
BOLT (5X20) ![]() |
||||
# 4 |
44191-14J00-000 4419114J00000 4419114J00000 |
SHIELD, FUEL TANK HEAT
|
||||
# 5 |
44543-14J00-000 4454314J00000 4454314J00000 |
SCREW
|
||||
# 6 |
44572-13G00-000 4457213G00000 4457213G00000 |
FASTENER, FUEL TANK
FASTENER, COVER |
||||
# 7 |
09320-08071-000 0932008071000 0932008071000 |
CUSHION
|
||||
# 8 |
44276-21H00-000 44276-21H01-0004427621H00000 |
CUSHION, FUEL TANK COVER
CUSHION, TANK COVER |
||||
# 9 |
44542-41G00-000 4454241G00000 4454241G00000 |
CUSHION, FUEL TANK REAR
CUSHION, REAR |
||||
# 10 |
44530-41G00-000 44530-41G01-0004453041G00000 |
BRACKET. FUEL TANK REAR
BRACKET, REAR |
||||
# 11 |
44546-44H00-000 4454644H00000 4454644H00000 |
RUBBER. FRONT
RUBBER, TANK FRONT |
||||
# 12 |
44511-16G00-000 44511-16G01-0004451116G00000 |
CUSHION SV650/K3- SV1000
CUSHION |
||||
# 13 |
44512-16G00-000 4451216G00000 4451216G00000 |
SPACER
SPACER, TANK FRONT |
||||
# 14 |
09139-06192-000 0913906192000 0913906192000 |
SCREW (6X25)
|
||||
# 15 |
09160-06054-000 0916006054000 0916006054000 |
RONDELLE 6.5X22X1.6
WASHER (6.5X22X1.6) ![]() |
||||
# 16 |
09106-06119-000 0910606119000 0910606119000 |
BOLT (6X110)
|
||||
# 17 |
44561-18G00-000 4456118G00000 4456118G00000 |
SPACER
SPACER, TANK REAR |
||||
# 18 |
44423-14J00-000 4442314J00000 4442314J00000 |
HOSE, DRAIN
|
||||
# 19 |
44424-14J00-000 4442414J00000 4442414J00000 |
HOSE, BREATHER NO.1
|
||||
# 20 |
44424-14J10-000 4442414J10000 4442414J10000 |
HOSE, BREATHER NO.2
|
||||
# 21 |
44425-09E00-000 44425-09E01-0004442509E00000 |
HOSE, VACUUM
HOSE, BREATHER NO.3 |
||||
# 22 |
09352-12163-600 09352-12164-6000935212163600 |
HOSE (12X16X600)
![]() |
||||
# 23 |
09367-06007-000 0936706007000 0936706007000 |
RAPPORT
3 WAY |
||||
# 24 |
44574-35F00-000 4457435F00000 4457435F00000 |
STAY, FUEL TANK
![]() |

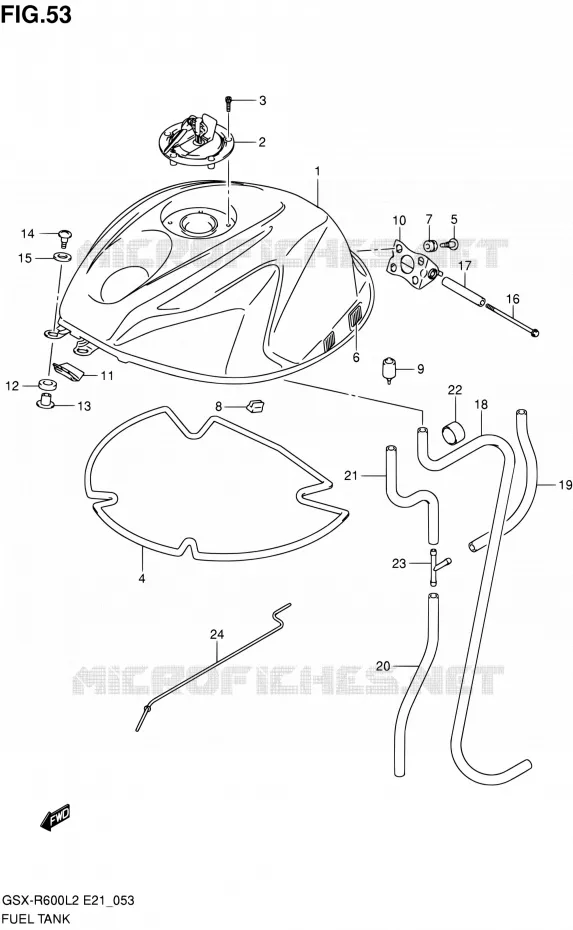

Suzuki GSX-R
Cilinderinhoud: 600 cc Jaar: 2012 Model code GSX-R600UFL2(E21)
