| # 1 |
21200-26833-000 2120026833000 2120026833000 |
GEAR ASSY, PRIMARY DRIVEN
GEAR, PRIMARY DRIVEN (NT:75)
|
||||
| # 2 |
22721-17D02-000 2272117D02000 2272117D02000 |
GEAR, GENERATOR DRIVE
GEAR, GENERATOR (NT:34/64) |
||||
| # 3 |
09160-25037-000 0916025037000 0916025037000 |
RONDELLE 25.1X54X2.5
WASHER (25.1X54X2.5)
|
||||
| # 4 |
09263-35017-000 0926335017000 0926335017000 |
ROULEMENT A AIG. 35X40X35.8
BEARING (35X40X35.8)
|
||||
| # 5 |
21410-27A02-000 2141027A02000 2141027A02000 |
MOYEU D'EMBRAYAGE GSF/GSX/R750
HUB, CLUTCH SLEEVE
|
||||
| # 6 |
21441-37430-000 2144137430000 2144137430000 |
PLATE, CLUTCH DRIVE
|
||||
| # 7 |
21442-37401-000 2144237401000 2144237401000 |
DISQUE EMBRAYAGE LS/VS/VX/VZ
PLATE, CLUTCH DRIVE NO.2
|
||||
| # 8 |
21451-05A00-000 2145105A00000 2145105A00000 |
DISQUE D'EMBRAYAGE METAL T:2.0
PLATE, CLUTCH DRIVEN
|
||||
| # 9 |
21471-37400-000 2147137400000 2147137400000 |
ANNEAU D'EMBRAYAGE T=1.4
SEAT, WAVE WASHER |
||||
| # 10 |
09164-00004-000 0916400004000 0916400004000 |
RONDELLE ELASTIQUE
WASHER, CLUTCH PLATE |
||||
| # 11 |
21462-27A00-000 2146227A00000 2146227A00000 |
PLATEAU PRESSION D'EMBRAYAGE
DISK, CLUTCH PRESSURE
|
||||
| # 12 |
09116-06203-000 0911606203000 0911606203000 |
BOLT
BOLT (6X28.4) |
||||
| # 13 |
09140-22008-000 0914022008000 0914022008000 |
ECROU 22MM
NUT, CLUTCH SLEEVE HUB
|
||||
| # 14 |
09160-25056-000 0916025056000 0916025056000 |
RONDELLE 25X50X2.5
WASHER (25X50X2.5)
|
||||
| # 15 |
09164-22007-000 0916422007000 0916422007000 |
RONDELLE 22.2X35X2(3)
WASHER (22.2X35X2)
|
||||
| # 16 |
09181-22251-000 0918122251000 0918122251000 |
RONDELLE 22X36X1.0
WASHER (22X36X1.0)
|
||||
| # 17 |
21413-38G00-000 2141338G00000 2141338G00000 |
SPRING, CLUTCH
|
||||
| # 18 |
23110-20C00-000 2311020C00000 2311020C00000 |
TIGE POUSSER D'EMBRAYAGE
ROD, CLUTCH PUSH, RH
|
||||
| # 19 |
23111-15501-000 2311115501000 2311115501000 |
TIGE POUSSER D'EMBRAYAGE
ROD, CLUTCH PUSH, LH |
||||
| # 20 |
23121-27A00-000 2312127A00000 2312127A00000 |
PIECE DE PRESSION D'EMBRAYAGE
PIECE, CLUTCH PUSH
|
||||
| # 21 |
23200-31300-000 2320031300000 2320031300000 |
MECANISME D'EMBRAYAGE
SCREW ASSY, CLUTCH RELEASE
|
||||
| # 22 |
09134-06010-000 0913406010000 0913406010000 |
VIS 6X25MM
SCREW (6X25)
|
||||
| # 23 |
08310-00067-000 0831000067000 0831000067000 |
ECROU 6MM
NUT
|
||||
| # 24 |
09160-15045-000 0916015045000 0916015045000 |
RONDELLE 15, 5X28X1
WASHER (15.5X28X1)
|
||||
| # 25 |
09263-15003-000 0926315003000 0926315003000 |
ROULEMENT A AIGUILLE 15X28X2
BEARING, CLUTCH (15X28X2)
|
||||
| # 26 |
09283-06007-000 09285-06015-0000928306007000 |
SIMMER 6X34X5.5
SEAL, CLUTCH (6X34X5.5) |
||||
| # 27 |
09443-07038-000 0944307038000 0944307038000 |
RESSORT
SPRING, CLUTCH RETURN
|
||||
| # 28 |
01550-06163-000 0155006163000 |
KIT47370-40H00
BOLT, CLUTCH SCREW |
Niet beschikbaar |

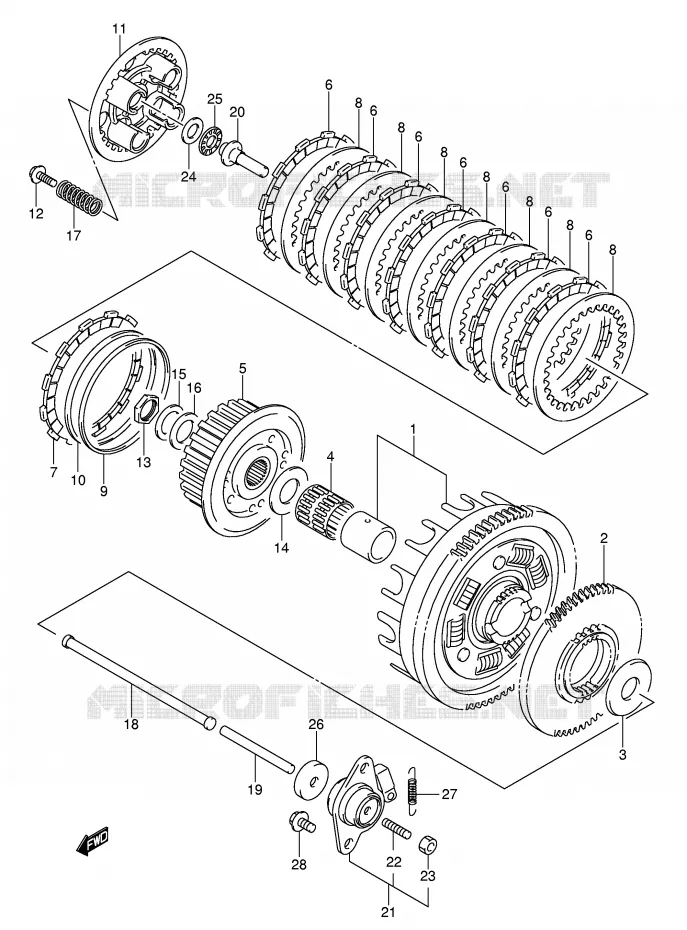

Suzuki BANDIT
Cilinderinhoud: 650 cc Jaar: 2005 Model code GSF650K5(E2)
