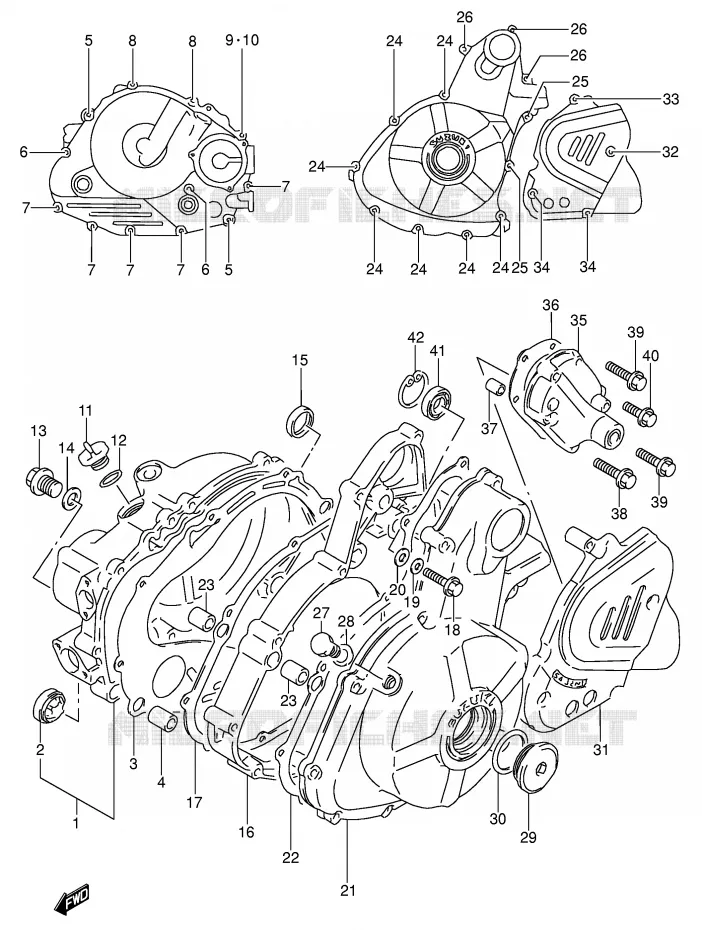

| # 1 |
11340-12D00-000 1134012D00000 1134012D00000 |
COUVERCLE D'EMBRAYAGE DR650R
COVER, CLUTCH |
||||
| # 1 |
11340-12D30-000 1134012D30000 1134012D30000 |
COUVERCLE D'EMBRAYAGE DR650R
COVER, CLUTCH |
||||
| # 2 |
11971-33210-000 1197133210000 1197133210000 |
VERRE CONTROLLE D'HUILE
LENS, OIL LEVEL
|
||||
| # 3 |
11482-12D01-000 1148212D01000 1148212D01000 |
JOINT COUVERCLE D'EMBRAYAGE
GASKET, CLUTCH COVER |
||||
| # 4 |
04211-13189-000 0421113189000 0421113189000 |
DOUILLE 10.4X13X18
PIN
|
||||
| # 5 |
01547-06505-000 01547-0650B-0000154706505000 |
SCREW
BOLT (6X50) |
||||
| # 5 |
01547-06507-000 0154706507000 0154706507000 |
VIS 6X50MM
BOLT (6X50)
|
||||
| # 6 |
01547-06404-000 01547-0640B-0000154706404000 |
BOLT. REAR
.BOLT (6X40) |
||||
| # 6 |
01547-06407-000 0154706407000 0154706407000 |
VIS 6X40MM CHROMEE
BOLT (6X40)
|
||||
| # 7 |
01547-06354-000 01547-0635B-0000154706354000 |
BOLT
BOLT (6X35) |
||||
| # 7 |
01547-06357-000 0154706357000 0154706357000 |
VIS 6X35MM CHROMEE
BOLT (6X35)
|
||||
| # 8 |
01547-06254-000 01547-0625B-0000154706254000 |
BOLT. FINAL GEAR CASE COVER
BOLT (6X25) |
||||
| # 8 |
01547-06257-000 0154706257000 0154706257000 |
VIS 6X25MM CHROMEE
BOLT (6X25)
|
||||
| # 9 |
09103-06141-000 09103-06180-0000910306141000 |
BOLT (6X25)
|
||||
| # 10 |
08322-01063-000 08322-0106A-0000832201063000 |
WASHER
|
||||
| # 11 |
09259-20008-000 09259-20008-XC00925920008000 |
PLUG
PLUG, OIL FILLER |
||||
| # 11 |
09259-20016-000 09259-20019-0000925920016000 |
BOUCHON DE VIDANGE 20X10MM
PLUG, OIL FILLER |
||||
| # 12 |
09280-17003-000 0928017003000 0928017003000 |
JOINT TORIQUE 3.1X16.8
O RING
|
||||
| # 13 |
09247-14015-000 0924714015000 0924714015000 |
BOUCHON DE VIDANGE
PLUG, OIL CHECK |
||||
| # 14 |
09168-14002-000 0916814002000 0916814002000 |
BAGUE DE JOINT 13.8X18.8X4.8MM
GASKET
|
||||
| # 14 |
09168-14004-000 0916814004000 0916814004000 |
BAGUE DE JOINT 14.1X18X1.5MM
GASKET
|
||||
| # 15 |
11342-15D00-000 1134215D00000 1134215D00000 |
CAPUCHON DE COUVERCLE D'EMBR.
PLUG, CLUTCH COVER HOLE |
||||
| # 16 |
11331-12D20-000 1133112D20000 1133112D20000 |
COUVERCLE D'ALLUMAGE INT.DR650
COVER, MAGNETO INNER |
Niet beschikbaar | |||
| # 16 |
11331-12D30-000 1133112D30000 1133112D30000 |
COVER, MAGNETO INNER
|
Niet beschikbaar | |||
| # 17 |
11483-12D10-000 1148312D10000 1148312D10000 |
JOINT COUVERCLE D'ALLUMAGE INT
GASKET, MAGNETO INNER COVER |
||||
| # 18 |
01547-06303-000 01547-0630B-0000154706303000 |
BOLT
BOLT (6X30) |
||||
| # 18 |
01547-06304-000 01547-06307-0000154706304000 |
VIS 6X30MM CHROMEE
.BOLT (6X30) |
||||
| # 19 |
08321-01063-000 08321-0106A-0000832101063000 |
LOCK WASHER
|
||||
| # 20 |
08322-01063-000 08322-0106A-0000832201063000 |
WASHER
|
||||
| # 21 |
11351-12D20-000 1135112D20000 1135112D20000 |
COUVERCLE D'ALLUMAGE DR650RSE
COVER, MAGNETO OUTER |
||||
| # 21 |
11351-12D40-000 1135112D40000 1135112D40000 |
COUVERCLE D'ALL.EXT. DR650RER
COVER, MAGNETO OUTER |
Niet beschikbaar | |||
| # 22 |
11483-12D20-000 1148312D20000 1148312D20000 |
JOINT COUVERCLE D'ALLUMAGE EXT
GASKET, MAGNETO OUTER COVER |
||||
| # 23 |
04211-13189-000 0421113189000 0421113189000 |
DOUILLE 10.4X13X18
PIN
|
||||
| # 24 |
01547-06603-000 01547-0660B-0000154706603000 |
BOLT. CRANKCASE
BOLT (6X60) |
||||
| # 24 |
01547-06607-000 0154706607000 0154706607000 |
VIS 6X60MM
BOLT (6X60) |
||||
| # 25 |
01547-06555-000 01547-0655B-0000154706555000 |
BOLT
BOLT (6X55) |
||||
| # 25 |
01547-06557-000 0154706557000 0154706557000 |
BOLT (6X55)
|
||||
| # 26 |
01547-06354-000 01547-0635B-0000154706354000 |
BOLT
BOLT (6X35) |
||||
| # 26 |
01547-06357-000 0154706357000 0154706357000 |
VIS 6X35MM CHROMEE
BOLT (6X35)
|
||||
| # 27 |
09247-12103-000 0924712103000 0924712103000 |
BOUCHON DE VIDANGE
PLUG, T.D.C
|
||||
| # 28 |
09168-12002-000 0916812002000 0916812002000 |
BAGUE DE JOINT 12.1X16.2X3.7
GASKET
|
||||
| # 29 |
09259-36016-0ML 09259-36016-20H09259360160ML |
COUVERCLE A VIS, ALLUMAGE
PLUG |
||||
| # 30 |
09280-33004-000 0928033004000 0928033004000 |
JOINT TORIQUE D: 3.1, ID: 32.7
O RING
|
||||
| # 31 |
11361-12D20-000 1136112D20000 1136112D20000 |
COUVERCLE DE PIGNON DR650RSE
COVER, ENGINE SPROCKET |
Niet beschikbaar | |||
| # 31 |
11361-12D40-000 1136112D40000 1136112D40000 |
COUVERCLE DE PIGNON DR650RER
COVER, ENGINE SPROCKET |
Niet beschikbaar | |||
| # 32 |
01547-06454-000 01547-0645B-0000154706454000 |
BOLT
BOLT (6X45) |
||||
| # 32 |
01547-06457-000 0154706457000 0154706457000 |
VIS 6X45MM CHROMEE
BOLT (6X45)
|
||||
| # 33 |
01547-06354-000 01547-0635B-0000154706354000 |
BOLT
BOLT (6X35) |
||||
| # 33 |
01547-06357-000 0154706357000 0154706357000 |
VIS 6X35MM CHROMEE
BOLT (6X35)
|
||||
| # 34 |
01547-06205-000 01547-0620B-0000154706205000 |
BOLT
BOLT (6X20) |
||||
| # 34 |
01547-06207-000 0154706207000 0154706207000 |
VIS 6X20MM CHROMEE
BOLT (6X20)
|
||||
| # 35 |
11371-12D30-000 1137112D30000 1137112D30000 |
COUVERCLE D'AXE CHANGEM.VIT.
COVER, GEAR SHIFT |
||||
| # 35 |
11371-37400-000 1137137400000 |
COUVERCLE D'AXE CHANGEM. VIT.
COVER, GEAR SHIFT |
Niet beschikbaar | |||
| # 36 |
11485-12D01-000 1148512D01000 1148512D01000 |
JOINT DE COUVERCLE D'AXE DE CH
GASKET, GEAR SHIFT COVER |
||||
| # 37 |
04211-09129-000 0421109129000 0421109129000 |
BOULON 9X12
PIN
|
||||
| # 38 |
01547-06353-000 01547-0635B-0000154706353000 |
BOLT
BOLT (6X35) |
||||
| # 39 |
01547-06303-000 01547-0630B-0000154706303000 |
BOLT
BOLT (6X30) |
||||
| # 39 |
01547-06304-000 01547-06307-0000154706304000 |
VIS 6X30MM CHROMEE
.BOLT (6X30) |
||||
| # 40 |
01547-06203-000 01547-0620B-0000154706203000 |
BOLT
BOLT (6X20) |
||||
| # 41 |
09262-12001-000 0926212001000 0926212001000 |
ROULEMENT A BILLE 12X28X8
BEARING, STARTER PINION
|
||||
| # 42 |
08331-41286-000 08331-41289-0000833141286000 |
CIRCLIP
|
