Cilinderinhoud

Model

Jaar

Afwerking

Onderdelencatalogus

Onderdelendiagram

KOPPELING

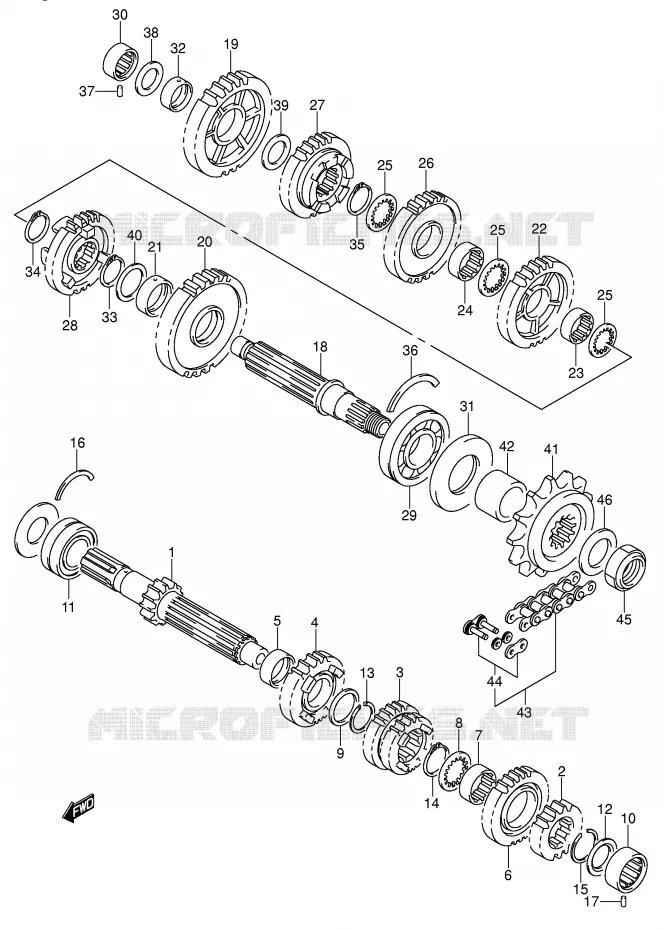

TRANSMISSION VOOR SUZUKI GSX-R 750 2000

SCHAKELEN ASSY

TRANSMISSION voor Suzuki GSX-R 750 2000

(1)  24120-35F10-000
SHAFT, COUNTER (NT:14)

(2)  24221-35F00-000
GEAR,2ND DRIVE
GEAR, 2ND DRIVE (NT:19)

(3)  24231-35F20-000
GEAR,3RD & 4TH DRIVE GSXR750/Y
GEAR, 3RD & 4TH (NT:22/20)

(4)  24251-35F21-000
GEAR,5TH DRIVE
GEAR, 5TH DRIVE (NT:23)

(5)  24252-35F00-000
BUSH 5TH DRIVE GEAR

(6)  24261-35F02-000
GEAR, 6TH DRIVE (NT:22)

(7)  24262-35F00-000
BUSH, 6TH DRIVE GEAR

(8)  09167-27003-000
WASHER,27X36X2.5
WASHER, 6TH DRIVE

(9)  09181-27014-000
WASHER,27X36X2.5
WASHER, 5TH DRIVE

(10)  09263-20087-000
BEARING,20X34X13.5
BEARING, CNTR LH

(11)  09267-25013-000
BEARING
BEARING, CNTR RH

(12)  09285-20006-000
SIMMER 20X31.2X2.7
SEAL, OIL (20X31.2X2.7)

(13)  09380-27006-000
CIRCLIP
CIRCLIP, 5TH DRIVE

(14)  09380-27006-000
CIRCLIP
CIRCLIP, 6TH DRIVE

(15)  09380-27004-000
ANNEAU RETENUE 27MM
CIRCLIP, 2ND DRIVE

(16)  09390-58001-000
RONDELLE DEMI
C RING, CNTR RH

(17)  09261-06003-000
GOUJON
PIN, CNTR LH

(18)  24131-35F01-000
SHAFT, DRIVE

(19)  24311-35F20-000
GEAR, 1ST DRIVEN (NT:39)

(20)  24321-35F01-000
2ND DRIVEN GEAR
GEAR, 2ND DRIVEN (NT:39)

(21)  24322-35F00-000
BUSH,2ND DRIVEN GEAR
BUSH, 2ND DRIVEN

(22)  24331-35F00-000
GEAR,3RD DRIVEN
GEAR, 3RD DRIVEN (NT:37)

(23)  24332-35F00-000
BUSH,3RD DRIVEN GEAR
BUSH, 3RD DRIVEN

(24)  24332-35F00-000
BUSH,3RD DRIVEN GEAR
BUSH, 4TH DRIVEN GEAR

(25)  24333-02F00-000
3RD DRIVEN WASHER
WASHER, 3RD & 4TH DRIVEN

(25)  24333-02F00-000
3RD DRIVEN WASHER
WASHER, 3RD & 4TH DRIVEN

(25)  24333-02F00-000
3RD DRIVEN WASHER
WASHER, 3RD & 4TH DRIVEN

(26)  24341-35F00-000
GEAR,4TH DRIVEN
GEAR, 4TH DRIVEN (NT:29)

(27)  24351-35F00-000
GEAR,5TH DRIVEN
GEAR, 5TH DRIVEN (NT:30)

(28)  24361-35F00-000
GEAR,6TH DRIVEN
GEAR, 6TH DRIVEN (NT:26)

(29)  09262-28025-000
ROULEMENT A BILLE 28X70X18
BEARING, DRIVE SHAFT,LH

(30)  09263-20087-000
BEARING,20X34X13.5
BEARING, DRIVE SHAFT,RH

(31)  09283-36008-000
SIMMER 36X70X6
SEAL, DRIVE SHAFT,OIL

(32)  09300-22008-000
DOUILLE 22X26X9
BUSH, 1ST DRIVEN GEAR

(33)  09380-27006-000
CIRCLIP
CIRCLIP, 2ND DRIVEN GEAR

(34)  09380-27006-000
CIRCLIP
CIRCLIP, 3RD DRIVEN GEAR

(35)  09380-27006-000
CIRCLIP
CIRCLIP, 4TH DRIVEN GEAR

(36)  09390-70001-000
RONDELLE DEMI 67.6X75X2
C RING, DRIVE SHAFT,LH

(37)  09261-06003-000
GOUJON
PIN, DRIVE SHAFT,RH

(38)  09181-20251-000
RONDELLE SURETE 20X34X1.0
WASHER, 1ST DRIVEN RH

(39)  09181-22223-000
RONDELLE SURETE 22X34X1.0
WASHER, 1ST DRIVEN LH

(40)  09160-27008-000
RONDELLE 27X36X1
WASHER, 2ND DRIVEN

(41)  27510-20A21-000
SPROCKET GSX-R750/Y-DL1000
SPROCKET, ENGINE (NT:17)

(42)  27531-35F01-000
SPACER, ENGINE SPROCKET

(43)  27600-33E20-110
CHAIN ASSY,DRIVE
CHAIN ASSY (RK525ROZ4,110L)

(44)  27620-33E01-000
JOINT SET,DRIVE CHAIN
JOINT SET

(45)  09159-20004-000
ECROU 20MM
NUT, ENGINE SPROCKET

(46)  09160-25009-000
RONDELLE 25X41X3
WASHER (25X41X3)
Onderdeelnummer Produkt Stukprijs Incl. BTW Aantal
# 1

24120-35F00-000

24120-35F10-000
 2412035F00000
SHAFT, COUNTER (NT:14)
# 2

24221-35F00-000
2422135F00000

2422135F00000
GEAR, 2ND DRIVE
GEAR, 2ND DRIVE (NT:19)
# 3

24231-35F00-000

24231-35F20-000
 2423135F00000
GEAR, 3RD & 4TH DRIVE GSXR750/Y
GEAR, 3RD & 4TH (NT:22/20)
# 4

24251-35F00-000

24251-35F21-000
 2425135F00000
GEAR, 5TH DRIVE
GEAR, 5TH DRIVE (NT:23)
# 5

24252-35F00-000
2425235F00000

2425235F00000
BUSH 5TH DRIVE GEAR
# 6

24261-35F00-000

24261-35F02-000
 2426135F00000
GEAR, 6TH DRIVE (NT:22)
# 7

24262-35F00-000
2426235F00000

2426235F00000
BUSH, 6TH DRIVE GEAR
# 8

09167-27003-000
0916727003000

0916727003000
WASHER, 27X36X2.5
WASHER, 6TH DRIVE
# 9

09181-27014-000
0918127014000

0918127014000
WASHER, 27X36X2.5
WASHER, 5TH DRIVE
# 10

09263-20087-000
0926320087000

0926320087000
BEARING, 20X34X13.5
BEARING, CNTR LH
# 11

09267-25013-000
0926725013000

0926725013000
BEARING
BEARING, CNTR RH
# 12

09285-20006-000
0928520006000

0928520006000
SIMMER 20X31.2X2.7
SEAL, OIL (20X31.2X2.7)
# 13

09380-27006-000
0938027006000

0938027006000
CIRCLIP
CIRCLIP, 5TH DRIVE
# 14

09380-27006-000
0938027006000

0938027006000
CIRCLIP
CIRCLIP, 6TH DRIVE
# 15

09380-27004-000
0938027004000

0938027004000
ANNEAU RETENUE 27MM
CIRCLIP, 2ND DRIVE
# 16

09390-58001-000
0939058001000

0939058001000
RONDELLE DEMI
C RING, CNTR RH
# 17

09261-06003-000
0926106003000

0926106003000
GOUJON
PIN, CNTR LH
# 18

24131-35F00-000

24131-35F01-000
 2413135F00000
SHAFT, DRIVE
# 19

24311-35F00-000

24311-35F20-000
 2431135F00000
GEAR, 1ST DRIVEN (NT:39)
# 20

24321-35F01-000
2432135F01000

2432135F01000
2ND DRIVEN GEAR
GEAR, 2ND DRIVEN (NT:39)
# 21

24322-35F00-000
2432235F00000

2432235F00000
BUSH, 2ND DRIVEN GEAR
BUSH, 2ND DRIVEN
# 22

24331-35F00-000
2433135F00000

2433135F00000
GEAR, 3RD DRIVEN
GEAR, 3RD DRIVEN (NT:37)
# 23

24332-35F00-000
2433235F00000

2433235F00000
BUSH, 3RD DRIVEN GEAR
BUSH, 3RD DRIVEN
# 24

24332-35F00-000
2433235F00000

2433235F00000
BUSH, 3RD DRIVEN GEAR
BUSH, 4TH DRIVEN GEAR
# 25

24333-02F00-000
2433302F00000

2433302F00000
3RD DRIVEN WASHER
WASHER, 3RD & 4TH DRIVEN
# 26

24341-35F00-000
2434135F00000

2434135F00000
GEAR, 4TH DRIVEN
GEAR, 4TH DRIVEN (NT:29)
Niet beschikbaar
# 27

24351-35F00-000
2435135F00000

2435135F00000
GEAR, 5TH DRIVEN
GEAR, 5TH DRIVEN (NT:30)
# 28

24361-35F00-000
2436135F00000

2436135F00000
GEAR, 6TH DRIVEN
GEAR, 6TH DRIVEN (NT:26)
# 29

09262-28025-000
0926228025000

0926228025000
ROULEMENT A BILLE 28X70X18
BEARING, DRIVE SHAFT, LH
# 30

09263-20087-000
0926320087000

0926320087000
BEARING, 20X34X13.5
BEARING, DRIVE SHAFT, RH
# 31

09283-36008-000
0928336008000

0928336008000
SIMMER 36X70X6
SEAL, DRIVE SHAFT, OIL
# 32

09300-22008-000
0930022008000

0930022008000
DOUILLE 22X26X9
BUSH, 1ST DRIVEN GEAR
# 33

09380-27006-000
0938027006000

0938027006000
CIRCLIP
CIRCLIP, 2ND DRIVEN GEAR
# 34

09380-27006-000
0938027006000

0938027006000
CIRCLIP
CIRCLIP, 3RD DRIVEN GEAR
# 35

09380-27006-000
0938027006000

0938027006000
CIRCLIP
CIRCLIP, 4TH DRIVEN GEAR
# 36

09390-70001-000
0939070001000

0939070001000
RONDELLE DEMI 67.6X75X2
C RING, DRIVE SHAFT, LH
# 37

09261-06003-000
0926106003000

0926106003000
GOUJON
PIN, DRIVE SHAFT, RH
# 38

09181-20251-000
0918120251000

0918120251000
RONDELLE SURETE 20X34X1.0
WASHER, 1ST DRIVEN RH
# 39

09181-22223-000
0918122223000

0918122223000
RONDELLE SURETE 22X34X1.0
WASHER, 1ST DRIVEN LH
# 40

09160-27008-000
0916027008000

0916027008000
RONDELLE 27X36X1
WASHER, 2ND DRIVEN
# 41

27510-20A20-000

27510-20A21-000
 2751020A20000
SPROCKET GSX-R750/Y-DL1000
SPROCKET, ENGINE (NT:17)
# 42

27531-35F00-000

27531-35F01-000
 2753135F00000
SPACER, ENGINE SPROCKET
# 43

27600-33E01-110

27600-33E20-110
 2760033E01110
CHAIN ASSY, DRIVE
CHAIN ASSY (RK525ROZ4, 110L)
# 44

27620-33E01-000
2762033E01000

2762033E01000
JOINT SET, DRIVE CHAIN
JOINT SET
# 45

09159-20004-000
0915920004000

0915920004000
ECROU 20MM
NUT, ENGINE SPROCKET
# 46

09160-25009-000
0916025009000

0916025009000
RONDELLE 25X41X3
WASHER (25X41X3)
