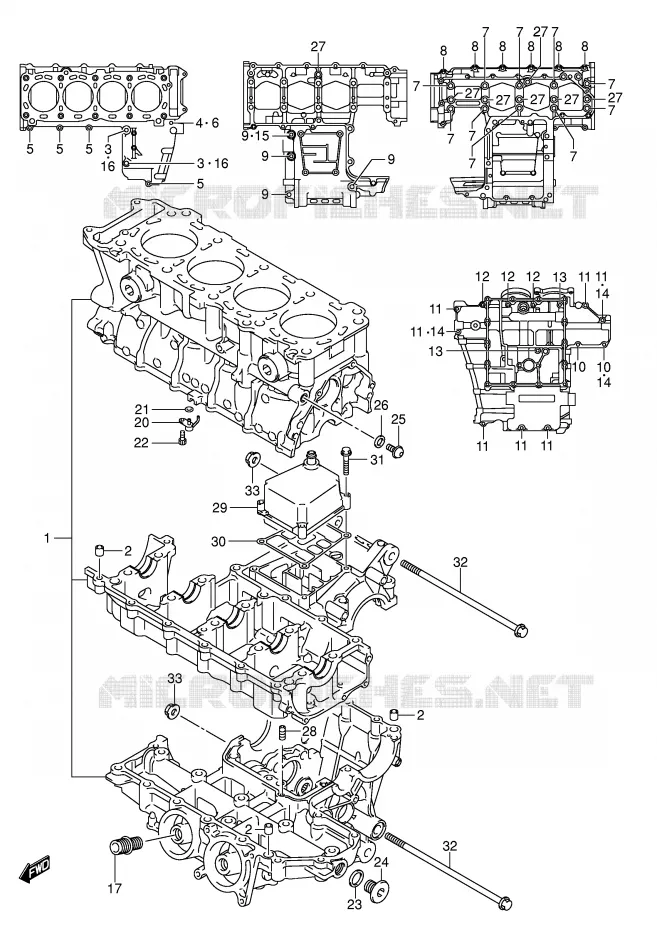

| # 1 |
11301-30880-000 1130130880000 1130130880000 |
CRANKCASE SET
|
Niet beschikbaar | |||
| # 2 |
11319-33E50-000 1131933E50000 1131933E50000 |
PIN, CRANKCASE
PIN
|
||||
| # 3 |
09106-08139-000 0910608139000 0910608139000 |
VIS 8X120MM
BOLT (8X120)
|
||||
| # 4 |
09168-06023-000 0916806023000 0916806023000 |
BAGUE DE JOINT 5.8X13X1.2
GASKET (5.8X13X1.2)
|
||||
| # 5 |
01547-06403-000 01547-0640B-0000154706403000 |
BOLT. REAR
BOLT |
||||
| # 6 |
01547-06803-000 01547-0680B-0000154706803000 |
BOLT. CRANKCASE
BOLT |
||||
| # 7 |
09103-09012-000 0910309012000 0910309012000 |
VIS 9X95MM
BOLT (9X95)
|
||||
| # 8 |
01547-06403-000 01547-0640B-0000154706403000 |
BOLT. REAR
BOLT |
||||
| # 9 |
07120-08653-000 07120-0865B-0000712008653000 |
BOLT
|
||||
| # 10 |
01547-06303-000 01547-0630B-0000154706303000 |
BOLT
|
||||
| # 11 |
01547-06403-000 01547-0640B-0000154706403000 |
BOLT. REAR
BOLT |
||||
| # 12 |
01547-06603-000 01547-0660B-0000154706603000 |
BOLT. CRANKCASE
BOLT |
||||
| # 13 |
01547-06703-000 01547-0670A-0000154706703000 |
BOLT
|
||||
| # 14 |
09168-06023-000 0916806023000 0916806023000 |
BAGUE DE JOINT 5.8X13X1.2
GASKET (5.8X13X1.2)
|
||||
| # 15 |
09168-08016-000 0916808016000 0916808016000 |
BAGUE DE JOINT 8.2X14X1
GASKET (8.2X14X1)
|
||||
| # 16 |
09168-08016-000 0916808016000 0916808016000 |
BAGUE DE JOINT 8.2X14X1
GASKET (8.2X14X1)
|
||||
| # 17 |
16591-06B00-000 16591-06B01-0001659106B00000 |
UNION, OIL FILTER STAND
|
||||
| # 18 |
12228-17E00-0D0 1222817E000D0 1222817E000D0 |
FIXATION DE COUSSINET (VERT)
BEARING, THRUST RH (GREEN) |
||||
| # 19 |
12228-17E00-0A0 1222817E000A0 1222817E000A0 |
FIXATION DE COUSSINET (ROUGE)
BEARING, THRUST LH (RED) |
||||
| # 19 |
12228-17E00-0B0 1222817E000B0 1222817E000B0 |
FIXATION DE COUSSINET (NOIR)
BEARING, THRUST LH (BLACK) |
||||
| # 19 |
12228-17E00-0C0 1222817E000C0 1222817E000C0 |
FIXATION DE COUSSINET (BLEU)
BEARING, THRUST LH (BLUE) |
||||
| # 19 |
12228-17E00-0D0 1222817E000D0 1222817E000D0 |
FIXATION DE COUSSINET (VERT)
BEARING, THRUST LH (GREEN) |
||||
| # 19 |
12228-17E00-0E0 1222817E000E0 1222817E000E0 |
FIXATION DE COUSSINET (JAUNE)
BEARING, THRUST LH (YELLOW) |
||||
| # 19 |
12228-17E00-0F0 1222817E000F0 1222817E000F0 |
FIXATION DE COUSSINET (BLANC)
BEARING, THRUST LH (WHITE) |
||||
| # 20 |
11390-35F00-000 1139035F00000 1139035F00000 |
JET COMP, PISTON COOLING
JET, PISTON COOLING |
||||
| # 21 |
09280-04004-000 0928004004000 0928004004000 |
JOINT TORIQUE D: 1.2, ID: 4
O RING (D:1.2, ID:4.0)
|
||||
| # 22 |
09106-06075-000 0910606075000 0910606075000 |
VIS 6X12MM, NOIR
BOLT, PISTON COOLING
|
||||
| # 23 |
09168-16002-000 0916816002000 0916816002000 |
BAGUE DE JOINT 16X22X2
GASKET
|
||||
| # 24 |
09248-16013-000 0924816013000 0924816013000 |
PLUG, OIL GALL NO, 1
PLUG, OIL GALLERY
|
||||
| # 25 |
09248-10010-000 0924810010000 0924810010000 |
PLUG, OIL GALL
PLUG, OIL GALLERY UPPER LH
|
||||
| # 26 |
09168-10002-000 0916810002000 0916810002000 |
BAGUE DE JOINT 10X14X3.6
GASKET, OIL GALLERY
|
||||
| # 27 |
09280-08012-000 0928008012000 0928008012000 |
JOINT TORIQUE D: 1.9, ID: 7.8
O RING (D:1.9, ID:7.8)
|
||||
| # 28 |
09493-28012-000 0949328012000 0949328012000 |
JET, OIL GALY MISSION
JET
|
||||
| # 29 |
11370-35F00-000 1137035F00000 1137035F00000 |
COVER COMP, BREATHER
COVER, BREATHER |
||||
| # 30 |
11484-35F00-000 1148435F00000 1148435F00000 |
GASKET, BREATHER COVER
|
||||
| # 31 |
01547-06303-000 01547-0630B-0000154706303000 |
BOLT
|
||||
| # 32 |
09103-10041-000 09103-10041-A050910310041000 |
BOLT (10X215)
|
||||
| # 33 |
09159-10058-000 09159-10115-0000915910058000 |
NUT.ENG RH MTG BRKT
NUT |
