| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
11100-38H00-000 1110038H00000 1110038H00000 |
HEAD ASSY, CYLINDER
|
||||
| # 2 |
09103-06266-000 0910306266000 0910306266000 |
BOLT
BOLT (6X40) |
||||
| # 3 |
09206-08007-000 0920608007000 0920608007000 |
DOUILLE A GUIDE 8MM
PIN
|
||||
| # 4 |
09168-06018-000 0916806018000 0916806018000 |
BAGUE DE JOINT
WASHER
|
||||
| # 5 |
11115-29G70-000 1111529G70000 1111529G70000 |
GUIDE, VALVE OS 0.3
GUIDE, VALVE (OS 0.5) |
||||
| # 6 |
11141-02H00-000 1114102H00000 1114102H00000 |
GASKET, CYLINDER HEAD
|
||||
| # 7 |
04211-11169-000 0421111169000 0421111169000 |
DOUILLE L:16
PIN
|
||||
| # 8 |
11117-29G00-000 1111729G00000 1111729G00000 |
BOLT COMP, CYLINDER HEAD(L95)
BOLT (10X95) |
||||
| # 9 |
09103-06222-000 0910306222000 0910306222000 |
BOLT
BOLT, OIL GALLERY (6X12)
|
||||
| # 10 |
09168-06023-000 0916806023000 0916806023000 |
BAGUE DE JOINT 5.8X13X1.2
GASKET
|
||||
| # 11 |
07120-0650A-000 071200650A000 071200650A000 |
BOLT, CYLINDER HEAD
|
||||
| # 12 |
11179-81402-000 1117981402000 1117981402000 |
O RING, SPARK PLUG PIPE
|
||||
| # 13 |
09280-11001-000 09280-11005-0000928011001000 |
JOINT TORIQUE
O RING (D:2.4, ID:10.8) |
||||
| # 14 |
09493-80005-000 0949380005000 0949380005000 |
JET, OIL GALLERY
JET, OIL |
||||
| # 15 |
09280-04004-000 0928004004000 0928004004000 |
JOINT TORIQUE D: 1.2, ID: 4
O RING (D:1.2, ID:4)
|
||||
| # 16 |
09248-16012-000 0924816012000 0924816012000 |
PLUG, PLGR OUT
PLUG
|
||||
| # 17 |
09168-16009-000 0916816009000 0916816009000 |
GASKET
|
||||
| # 18 |
09482-00555-000 09482-00556-0000948200555000 |
PLUG.SPARK CR8EIA-9
SPARK PLUG (DENSO, IU24D) |
||||
| # 18 |
09482-00557-000 09482-00558-0000948200557000 |
PLUG.SPARK CR9EIA-9
SPARK PLUG (DENSO, IU27D) |
||||
| # 18 |
09482-00559-000 09482-00560-0000948200559000 |
PLUG.SPARK(CR10EIA-9)
SPARK PLUG (DENSO, IU31D) |
||||
| # 19 |
13101-38H00-000 13101-38H01-0001310138H00000 |
PIPE ASSY, INTAKE GSX-R750/K8
PIPE, INTAKE |
||||
| # 20 |
09280-46006-000 09280-46007-0000928046006000 |
O-RING (D:2.4, ID:47X42)
O RING (D:2.40, ID:47.0)
|
||||
| # 21 |
13826-02H12-000 1382602H12000 1382602H12000 |
CLAMP, INTAKE PIPE
|
||||
| # 22 |
09120-06007-000 09120-06007-0000912006007000 |
SCREW
SCREW (6X18.4) |
||||
| # 23 |
13650-49X00-000 1365049X00000 1365049X00000 |
SENSOR. WATER TEMP
SENSOR, WATER TEMPERATURE |
||||
| # 24 |
09168-12017-000 0916812017000 0916812017000 |
BAGUE DE JOINT 12X17X1
GASKET
|

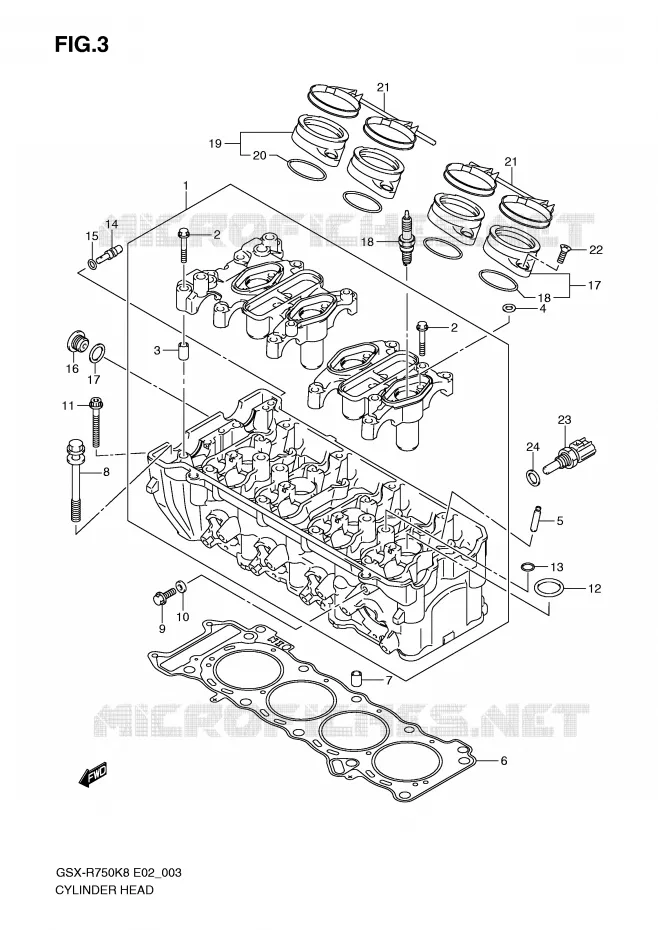

Suzuki GSX-R
Cilinderinhoud: 750 cc Jaar: 2010 Model code GSX-R750L0(E2)
