| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

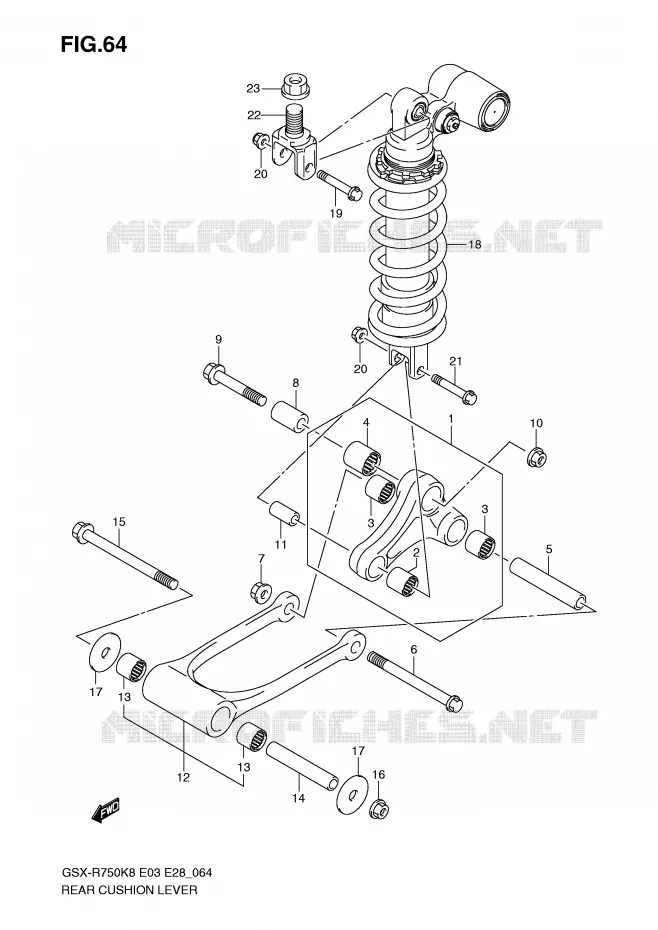

| # 1 |
62601-01850-000 6260101850000 6260101850000 |
LEVER SET, REAR CUSHION
|
||||
| # 2 |
09263-17034-000 09263-17057-0000926317034000 |
BEARING, 17X24X26
BEARING, FRONT (17X24X26)
|
||||
| # 3 |
09263-17037-000 09263-17053-0000926317037000 |
.BEARING(17X24X25)
BEARING, LOWER (17X24X25)
|
||||
| # 4 |
09263-20074-000 09263-20116-0000926320074000 |
BEARING, 20X27X32/L9
BEARING, UPPER (20X27X32)
|
||||
| # 5 |
62646-08G00-000 6264608G00000 6264608G00000 |
SPACER, RR CUSHION ROD
SPACER, LOWER |
||||
| # 6 |
62621-42E20-000 6262142E20000 6262142E20000 |
BOLT, LOWER
|
||||
| # 7 |
09159-12056-000 0915912056000 0915912056000 |
NUT
|
||||
| # 8 |
62317-27C10-000 6231727C10000 6231727C10000 |
DOUILLE
SPACER, UPPER
|
||||
| # 9 |
62658-35F00-000 6265835F00000 6265835F00000 |
BOLT, RR CUSHION LEVER, FR
BOLT, UPPER |
||||
| # 10 |
09159-12056-000 0915912056000 0915912056000 |
NUT
|
||||
| # 11 |
62684-40A10-000 6268440A10000 6268440A10000 |
DOUILLE
SPACER, FRONT
|
||||
| # 12 |
62601-01870-000 6260101870000 6260101870000 |
ROD SET, REAR CUSHION LEVER
|
||||
| # 13 |
09263-17037-000 09263-17053-0000926317037000 |
.BEARING(17X24X25)
BEARING, ROD (17X24X25)
|
||||
| # 14 |
62626-21H00-000 6262621H00000 6262621H00000 |
SPACER, ROD
|
||||
| # 15 |
62621-21H00-000 6262121H00000 6262121H00000 |
BOLT, ROD
|
||||
| # 16 |
09159-12056-000 0915912056000 0915912056000 |
NUT
|
||||
| # 17 |
09160-12037-000 0916012037000 0916012037000 |
WASHER 12X34X1
WASHER
|
||||
| # 18 |
62100-38H00-163 6210038H00163 6210038H00163 |
ABSORBER ASSY. REAR SHOCK
ABSORBER ASSY, REAR SHOCK (YELLOW) |
||||
| # 18 |
62100-38H00-28W 6210038H0028W 6210038H0028W |
ABSORBER ASSY. REAR SHOCK
ABSORBER ASSY, REAR SHOCK (WHITE) |
||||
| # 18 |
62100-38H10-163 6210038H10163 6210038H10163 |
ABSORBER ASSY, REAR SHOCK (YELLOW)
|
Niet beschikbaar | |||
| # 18 |
62100-38H10-28W 6210038H1028W 6210038H1028W |
ABSORBER ASSY, REAR SHOCK (WHITE)
|
Niet beschikbaar | |||
| # 19 |
09103-10143-000 0910310143000 0910310143000 |
BOLT 10X55
BOLT, UPPER (10X55) |
||||
| # 20 |
09159-10115-000 0915910115000 0915910115000 |
NUT.ENG RH MTG BRKT
NUT
|
||||
| # 21 |
09103-10143-000 0910310143000 0910310143000 |
BOLT 10X55
BOLT, LOWER (10X55) |
||||
| # 22 |
62993-35F00-000 6299335F00000 6299335F00000 |
BRACKET, RR SHK ABS, UPPER
BRACKET, ABSORBER |
||||
| # 23 |
09159-20006-000 0915920006000 0915920006000 |
ECROU SURETE, 20MM
NUT
|
