| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

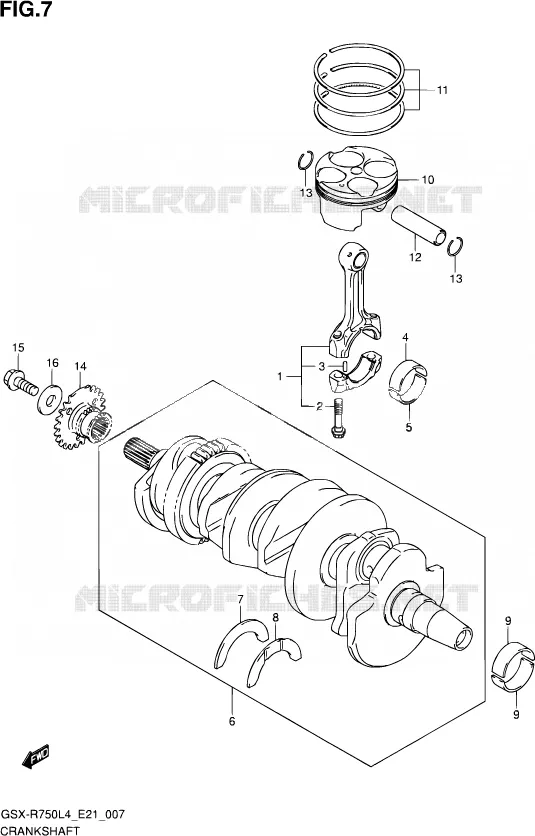

| # 1 |
12160-15J00-000 1216015J00000 1216015J00000 |
ROD ASSY, CONNECTING
|
||||
| # 2 |
12163-35F00-000 1216335F00000 1216335F00000 |
BOLT, CONNROD
.BOLT |
||||
| # 3 |
04221-04089-000 0422104089000 0422104089000 |
BOULON 4X8
.PIN
|
||||
| # 4 |
12164-15J00-0A0 1216415J000A0 1216415J000A0 |
BEARING, CRANK PIN (GREEN)
|
||||
| # 4 |
12164-15J00-0B0 1216415J000B0 1216415J000B0 |
BEARING, CRANK PIN (BLACK)
|
||||
| # 4 |
12164-15J00-0C0 1216415J000C0 1216415J000C0 |
BEARING, CRANK PIN (BROWN)
|
||||
| # 4 |
12164-15J00-0D0 1216415J000D0 1216415J000D0 |
BEARING, CRANK PIN (YELLOW)
|
||||
| # 5 |
12164-30G00-0A0 1216430G000A0 1216430G000A0 |
COUSSINET DE BIELLE, VERT
BEARING, CRANK PIN (GREEN) |
||||
| # 5 |
12164-30G00-0B0 1216430G000B0 1216430G000B0 |
COUSSINET DE BIELLE, NOIR
BEARING, CRANK PIN (BLACK) |
||||
| # 5 |
12164-30G00-0C0 1216430G000C0 1216430G000C0 |
COUSSINET DE BIELLE, BRUN
BEARING, CRANK PIN (BROWN) |
||||
| # 5 |
12164-30G00-0D0 1216430G000D0 1216430G000D0 |
COUSSINET DE BIELLE, JAUNE
BEARING, CRANK PIN (YELLOW) |
||||
| # 6 |
12000-02850-000 1200002850000 1200002850000 |
CRANKSHAFT SET
|
||||
| # 7 |
12228-17E00-0D0 1222817E000D0 1222817E000D0 |
FIXATION DE COUSSINET (VERT)
.BEARING, THRUST RH (GREEN) |
||||
| # 8 |
12228-17E00-0A0 1222817E000A0 1222817E000A0 |
FIXATION DE COUSSINET (ROUGE)
.BEARING, THRUST LH (RED) |
||||
| # 8 |
12228-17E00-0B0 1222817E000B0 1222817E000B0 |
FIXATION DE COUSSINET (NOIR)
.BEARING, THRUST LH (BLACK) |
||||
| # 8 |
12228-17E00-0C0 1222817E000C0 1222817E000C0 |
FIXATION DE COUSSINET (BLEU)
.BEARING, THRUST LH (BLUE) |
||||
| # 8 |
12228-17E00-0D0 1222817E000D0 1222817E000D0 |
FIXATION DE COUSSINET (VERT)
.BEARING, THRUST LH (GREEN) |
||||
| # 8 |
12228-17E00-0E0 1222817E000E0 1222817E000E0 |
FIXATION DE COUSSINET (JAUNE)
.BEARING, THRUST LH (YELLOW) |
||||
| # 8 |
12228-17E00-0F0 1222817E000F0 1222817E000F0 |
FIXATION DE COUSSINET (BLANC)
.BEARING, THRUST LH (WHITE) |
||||
| # 9 |
12229-02H00-0A0 1222902H000A0 1222902H000A0 |
BEARING, CRANKSHAFT (GREEN)
|
||||
| # 9 |
12229-02H00-0B0 1222902H000B0 1222902H000B0 |
BEARING, CRANKSHAFT (BLACK)
|
||||
| # 9 |
12229-02H00-0C0 1222902H000C0 1222902H000C0 |
BEARING, CRANKSHAFT (BROWN)
|
||||
| # 9 |
12229-02H00-0D0 1222902H000D0 1222902H000D0 |
BEARING, CRANKSHAFT (YELLOW)
|
||||
| # 9 |
12229-02H00-0E0 1222902H000E0 1222902H000E0 |
BEARING, CRANKSHAFT (BLUE)
|
||||
| # 10 |
12111-02H10-0F0 1211102H100F0 1211102H100F0 |
PISTON
|
||||
| # 11 |
12140-02H00-000 1214002H00000 1214002H00000 |
RING SET, PISTON
|
||||
| # 12 |
12151-41G00-000 1215141G00000 1215141G00000 |
PIN, PISTON
|
||||
| # 13 |
09381-15001-000 0938115001000 0938115001000 |
CIRCLIP D'AXE DE PISTON 15MM
CIRCLIP |
||||
| # 14 |
12731-01H00-000 1273101H00000 1273101H00000 |
SPROCKET. CAM CHAIN
SPROCKET, CAM CHAIN (NT:17) |
||||
| # 15 |
09103-10189-000 0910310189000 0910310189000 |
VIS 10X23MM
BOLT (10X23)
|
||||
| # 16 |
08211-10285-000 0821110285000 0821110285000 |
WASHER, CRK BAL SET
WASHER |
