SCHAKELEN ASSY

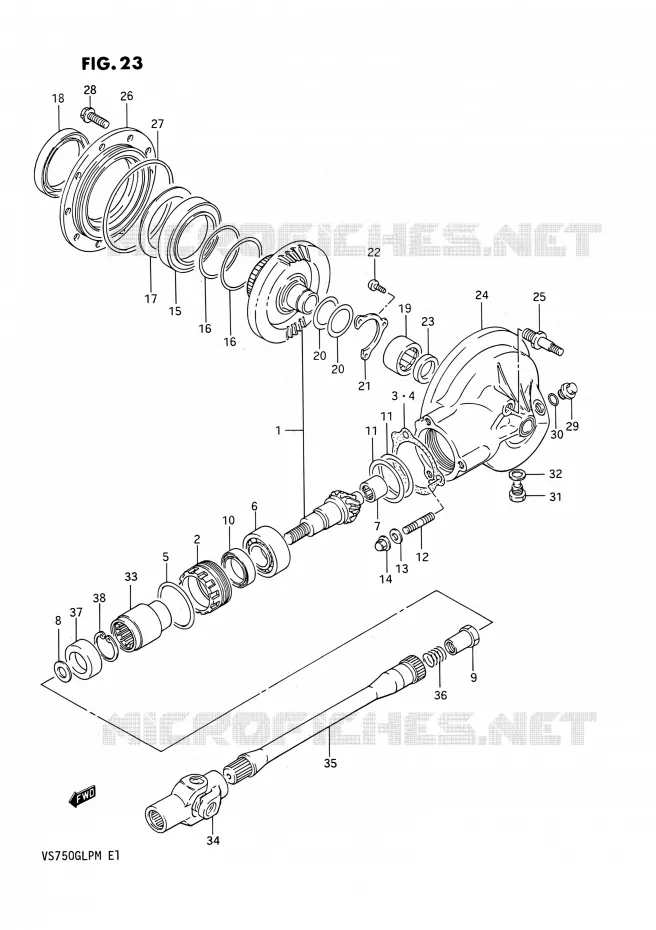

ACHTER AANDRIJFAS VOOR SUZUKI INTRUDER 750 1985

FUEL COCK

(1) 27311-38A00-000

ARBRE DENTEE CONIQUE ARR.VX/VS
.FINAL GEAR SET

(2) 27312-38A00-000

SUPPORT DE ROULEMENT
.STOPPER, BEARING

(3) 27313-38A00-000

TOLE ENTRETOISE
.PLATE

(4) 27313-38A10-000

TOLE ENTRETOISE
.PLATE

(5) 09280-62002-000

JOINT TORIQUE 1.9X61.6
.O RING (D:1.9,ID:61.6)

(6) 09267-30005-000

ROULEMENT A BILLE 30X60X23.8
.BEARING (30X60X23.8)

(7) 09263-17028-000

ROULEMENT A AIGUILLE 17X32X16
.BEARING (17X32X16)

(8) 09160-16029-000

RONDELLE 16X29X4
.WASHER (16X29X4)

(9) 09159-16010-000

ECROU 16MM
.NUT

(10) 09283-38009-000

SIMMER 38X54X6
.OIL SEAL (38X54X6)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.30)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.30)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.30)
SHIM SET

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.30)
SHIM SET

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.35)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.35)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.35)
SHIM SET

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.35)
SHIM SET

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.40)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.40)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.40)
SHIM SET

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.40)
SHIM SET

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.50)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.50)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.50)
SHIM SET

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.50)
SHIM SET

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.60)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.60)

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.60)
SHIM SET

(11) 27445-38810-000

SHIM SET
.SHIM (T:0.60)
SHIM SET

(12) 09108-10095-000

BOULON L=25
.STUD BOLT

(13) 09164-10008-000

RONDELLE 10.2X20X1.45
.LOCK WASHER

(14) 09159-10026-000

ECROU 10MM
.NUT

(15) 09262-70001-000

ROULEMENT A BILLE
.BEARING, RH

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.35)

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.35)

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.35)
SHIM SET

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.35)
SHIM SET

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.40)

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.40)

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.40)
SHIM SET

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.40)
SHIM SET

(16) 27327-34810-000

SHIM SET
SHIM BEARING (T:0.5)

(16) 27327-34810-000

SHIM SET
SHIM BEARING (T:0.5)

(16) 27327-34810-000

SHIM SET
SHIM BEARING (T:0.5)
SHIM SET

(16) 27327-34810-000

SHIM SET
SHIM BEARING (T:0.5)
SHIM SET

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.60)

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.60)

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.60)
SHIM SET

(16) 27327-34810-000

SHIM SET
.SHIM (T:0.60)
SHIM SET

(17) 27328-34200-000

PLAQUETTE ARRET
.PLATE

(18) 09289-70001-000

SIMMER 70X96X16-2
.OIL SEAL, RH

(19) 09263-32007-000

ROULEMENT A AIGUILLE
.BEARING, LH

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.05)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.05)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.05)
SHIM SET

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.05)
SHIM SET

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.10)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.10)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.10)
SHIM SET

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.10)
SHIM SET

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.20)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.20)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.20)
SHIM SET

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.20)
SHIM SET

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.25)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.25)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.25)
SHIM SET

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.25)
SHIM SET

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.35)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.35)

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.35)
SHIM SET

(20) 27326-34820-000

SHIM SET
.SHIM (T:1.35)
SHIM SET

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.40)

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.40)

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.40)
SHIM SET,FINAL DRIVE GEAR

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.40)
SHIM SET,FINAL DRIVE GEAR

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.45)

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.45)

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.45)
SHIM SET,FINAL DRIVE GEAR

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.45)
SHIM SET,FINAL DRIVE GEAR

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.50)

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.50)

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.50)
SHIM SET,FINAL DRIVE GEAR

(20) 27326-34810-000

SHIM SET,FINAL DRIVE GEAR
.SHIM (T:1.50)
SHIM SET,FINAL DRIVE GEAR

(21) 27329-34200-000

PLAQUETTE ARRET
.RETAINER, BEARING

(22) 02112-06127-000

VIS 6X12MM
.6 X 12 CROSS SCREW

(23) 09283-30028-000

SIMMER 30X42X7
.OIL SEAL (30X42X7)

(24) 27450-38A12-000

.CASE, FINAL GEAR

(25) 27481-38A01-000

BOULON
.STUD BOLT

(26) 27460-07A01-000

FLASQUE, ROUE ARRIERE VS/VX
.CASE, FINAL GEAR BEARING

(27) 09280-00015-000

JOINT TORIQUE D: 3.5,ID: 131.6
.O RING (D:3.5,ID:131.6)

(28) 01550-08257-000

VIS 8X25MM
.BOLT 8X25

(29) 09247-18001-000

BOUCHON DE VIDANGE
.PLUG, OIL FILLER

(30) 09280-18004-000

JOINT TORIQUE D: 2.4, ID: 17.8
.O RING (D:2.4,ID:17.8)

(31) 09247-14036-000

.PLUG, OIL DRAIN

(32) 09168-14004-000

BAGUE DE JOINT 14.1X18X1.5MM
.GASKET

(33) 27172-38A00-000

MANCHON DE CARDAN VS750/800/VX
.COUPLING, PROPELLER SHAFT

(34) 27100-38A00-000

YOKE COMP,UNIVERSAL JOINT
YOKE, UNIVERSAL JOINT

(35) 27151-38A01-000

TRANSMISSION DE CARDAN VS
SHAFT, PROPELLER

(36) 09440-18019-000

RESSORT
SPRING

(37) 09283-30051-000

SIMMER 28.4X48X15
OIL SEAL (28.4X48X15)

(38) 09381-40003-000

CIRCLIP

	Onderdeelnummer	Produkt	Aantal
# 1	27300-38812-000 27311-38A00-000 2730038812000	ARBRE DENTEE CONIQUE ARR.VX/VS .FINAL GEAR SET	206,95 €
# 2	27312-38A00-000 2731238A00000 2731238A00000	SUPPORT DE ROULEMENT .STOPPER, BEARING	41,86 €
# 3	27313-38A00-000 2731338A00000 2731338A00000	TOLE ENTRETOISE .PLATE	5,10 €
# 4	27313-38A10-000 2731338A10000 2731338A10000	TOLE ENTRETOISE .PLATE	5,43 €
# 5	09280-62002-000 0928062002000 0928062002000	JOINT TORIQUE 1.9X61.6 .O RING (D:1.9, ID:61.6)	3,57 €
# 6	09267-30005-000 0926730005000 0926730005000	ROULEMENT A BILLE 30X60X23.8 .BEARING (30X60X23.8)	85,47 €
# 7	09263-17028-000 0926317028000 0926317028000	ROULEMENT A AIGUILLE 17X32X16 .BEARING (17X32X16)	33,14 €
# 8	09160-16029-000 0916016029000 0916016029000	RONDELLE 16X29X4 .WASHER (16X29X4)	5,99 €
# 9	09159-16010-000 0915916010000 0915916010000	ECROU 16MM .NUT	8,76 €
# 10	09283-38009-000 0928338009000 0928338009000	SIMMER 38X54X6 .OIL SEAL (38X54X6)	12,40 €
# 11	27445-38A00-030 27445-38810-000 2744538A00030	SHIM SET .SHIM (T:0.30)	17,50 €
# 12	09108-10095-000 0910810095000 0910810095000	BOULON L=25 .STUD BOLT	4,24 €
# 13	09164-10008-000 0916410008000 0916410008000	RONDELLE 10.2X20X1.45 .LOCK WASHER	1,91 €
# 14	09159-10026-000 0915910026000 0915910026000	ECROU 10MM .NUT	5,57 €
# 15	09262-70001-000 0926270001000 0926270001000	ROULEMENT A BILLE .BEARING, RH	105,53 €
# 16	27327-34200-000 27327-34810-000 2732734200000	SHIM SET .SHIM (T:0.35)	21,67 €
# 17	27328-34200-000 2732834200000 2732834200000	PLAQUETTE ARRET .PLATE	5,10 €
# 18	09289-70001-000 0928970001000 0928970001000	SIMMER 70X96X16-2 .OIL SEAL, RH	37,62 €
# 19	09263-32007-000 0926332007000 0926332007000	ROULEMENT A AIGUILLE .BEARING, LH	54,28 €
# 20	27326-34201-000 27326-34820-000 2732634201000	SHIM SET .SHIM (T:1.05)	14,26 €
# 20	27326-34201-140 27326-34810-000 2732634201140	SHIM SET, FINAL DRIVE GEAR .SHIM (T:1.40)	9,23 €
# 20	27326-34211-000 27326-34820-000 2732634211000	SHIM SET .SHIM (T:1.10)	14,26 €
# 21	27329-34200-000 2732934200000 2732934200000	PLAQUETTE ARRET .RETAINER, BEARING	5,61 €
# 22	02112-06128-000 02112-06127-000 0211206128000	VIS 6X12MM .6 X 12 CROSS SCREW	2,46 €
# 23	09283-30028-000 0928330028000 0928330028000	SIMMER 30X42X7 .OIL SEAL (30X42X7)	8,36 €
# 24	27450-38A00-000 27450-38A12-000 2745038A00000	.CASE, FINAL GEAR	694,90 €
# 25	27481-38A01-000 2748138A01000 2748138A01000	BOULON .STUD BOLT	11,31 €
# 26	27460-07A01-000 2746007A01000 2746007A01000	FLASQUE, ROUE ARRIERE VS/VX .CASE, FINAL GEAR BEARING	114,20 €
# 27	09280-00015-000 0928000015000 0928000015000	JOINT TORIQUE D: 3.5, ID: 131.6 .O RING (D:3.5, ID:131.6)	8,28 €
# 28	01517-08258-000 01550-08257-000 0151708258000	VIS 8X25MM .BOLT 8X25	3,62 €
# 29	09247-18001-000 0924718001000 0924718001000	BOUCHON DE VIDANGE .PLUG, OIL FILLER	5,95 €
# 30	09280-18004-000 0928018004000 0928018004000	JOINT TORIQUE D: 2.4, ID: 17.8 .O RING (D:2.4, ID:17.8)	5,35 €
# 31	09247-14019-000 09247-14036-000 0924714019000	.PLUG, OIL DRAIN	5,50 €
# 32	09168-14004-000 0916814004000 0916814004000	BAGUE DE JOINT 14.1X18X1.5MM .GASKET	2,71 €
# 33	27172-38A00-000 2717238A00000 2717238A00000	MANCHON DE CARDAN VS750/800/VX .COUPLING, PROPELLER SHAFT	41,48 €
# 34	27100-38A00-000 2710038A00000 2710038A00000	YOKE COMP, UNIVERSAL JOINT YOKE, UNIVERSAL JOINT	Niet beschikbaar	0,00 €
# 35	27151-38A01-000 2715138A01000 2715138A01000	TRANSMISSION DE CARDAN VS SHAFT, PROPELLER	133,21 €
# 36	09440-18019-000 0944018019000 0944018019000	RESSORT SPRING	2,80 €
# 37	09283-30051-000 0928330051000 0928330051000	SIMMER 28.4X48X15 OIL SEAL (28.4X48X15)	9,27 €
# 38	09381-40003-000 0938140003000 0938140003000	CIRCLIP	6,26 €

Houd er rekening mee dat de te koop aangeboden onderdelen onderdelen zijn uit de catalogus van de fabrikant, we moeten ze soms speciaal voor u bestellen bij Suzuki. Raadpleeg het gedeelte Verzending en Levering voor meer informatie over levertijden.
De schema's zijn niet contractueel, als u vragen heeft, staan onze professionals voor u klaar om u zo goed mogelijk te helpen en te adviseren.
Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de benodigde hoeveelheid bestelt. Houd er rekening mee dat de aangegeven eenheidsprijs de prijs is voor elk onderdeelnummer in hoeveelheid 1.
