| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

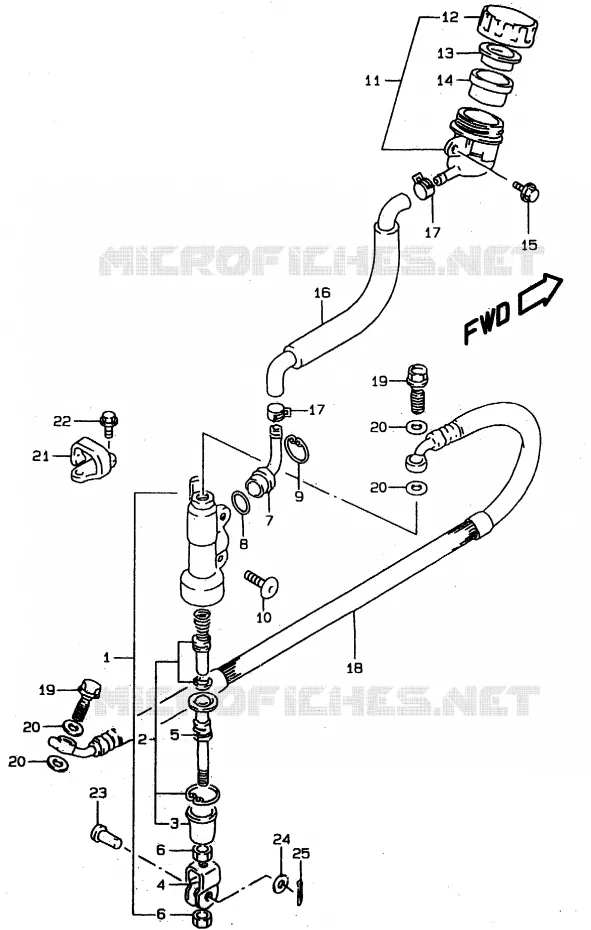

| # 1 |
69600-02B40-000 6960002B40000 6960002B40000 |
MAITRE CYL.DE FREIN ARR. RM80X
CYLINDER ASSY, REAR MASTER |
||||
| # 2 |
69600-04820-000 69600-04821-0006960004820000 |
PISTON/CUP SET
|
||||
| # 3 |
69691-00A00-000 6969100A00000 6969100A00000 |
GOMME
BOOT
|
||||
| # 4 |
69692-00B21-000 6969200B21000 6969200B21000 |
CONNECTEUR
YOKE |
||||
| # 5 |
69670-27A30-000 6967027A30000 6967027A30000 |
TIGE DU PRESSION
ROD, PUSH
|
||||
| # 6 |
69693-05A00-000 6969305A00000 6969305A00000 |
NUT
|
||||
| # 7 |
69672-00B20-000 6967200B20000 6967200B20000 |
RACCORD DU TUYAU
CONNECTOR
|
||||
| # 8 |
69686-34200-000 6968634200000 6968634200000 |
JOINT TORIQUE
O RING
|
||||
| # 9 |
69674-00B20-000 6967400B20000 6967400B20000 |
CLIPS
CIRCLIP
|
||||
| # 10 |
09139-06030-000 0913906030000 0913906030000 |
VIS 6X16MM
SCREW (6X16)
|
||||
| # 11 |
69740-03D10-000 6974003D10000 6974003D10000 |
RESERVOIR LIQUIDE DE FREIN ARR
TANK ASSY, RESERVOIR |
||||
| # 12 |
69669-03D10-000 6966903D10000 6966903D10000 |
COUVERCLE MAITRE CYL.D.FR. ARR
CAP |
||||
| # 13 |
69668-00B20-000 6966800B20000 6966800B20000 |
BAGUE DE JOINT
PLATE |
||||
| # 14 |
69667-00B20-000 6966700B20000 6966700B20000 |
SOUFFLET CAOUTCHOUC
DIAPHRAGM |
||||
| # 15 |
01547-06123-000 01547-0612B-0000154706123000 |
BOLT
|
||||
| # 16 |
69731-02B50-000 6973102B50000 6973102B50000 |
HOSE, RESERVOIR TANK
|
||||
| # 17 |
69735-00B20-000 6973500B20000 6973500B20000 |
BRIDE DE TUYAU
CLAMP |
||||
| # 18 |
69480-02B41-000 6948002B41000 6948002B41000 |
TUYAU DE FREIN ARRIERE RM80X
HOSE, REAR BRAKE |
||||
| # 19 |
09360-10017-000 09360-10061-0000936010017000 |
BOLT (10X1.00X22)
BOLT (10X1.00X24) |
||||
| # 20 |
09161-10009-000 0916110009000 0916110009000 |
RONDELLE 10X15X1.5
WASHER (10X15X1.5)
|
||||
| # 21 |
61196-00B21-000 6119600B21000 6119600B21000 |
GUIDE DE TUYAU
CLAMP, REAR BRAKE HOSE |
||||
| # 22 |
02142-05103-000 0214205103000 0214205103000 |
--> 02142-0510A
SCREW |
Niet beschikbaar | |||
| # 23 |
09200-08048-000 0920008048000 0920008048000 |
BOULON
PIN |
||||
| # 24 |
09160-08074-000 0916008074000 0916008074000 |
RONDELLE 8.5X13X1.6
WASHER |
||||
| # 24 |
09160-08119-000 09160-08090-0000916008119000 |
WASHER 8.5X14X1.5
WASHER |
||||
| # 25 |
04111-20158-000 04111-2015A-0000411120158000 |
PIN, COTTER
|
