| # 1 |
11341-22H00-000 1134122H00000 1134122H00000 |
COVER, CLUTCH
|
||||
| # 2 |
11482-48G00-000 1148248G00000 1148248G00000 |
GASKET. CLUTCH COVER
GASKET |
||||
| # 3 |
09103-06215-000 0910306215000 0910306215000 |
BOLT
BOLT (6X40) |
||||
| # 4 |
09103-06216-000 0910306216000 0910306216000 |
BOLT
BOLT (6X55) |
||||
| # 5 |
09168-06023-000 0916806023000 0916806023000 |
BAGUE DE JOINT 5.8X13X1.2
GASKET (5.8X13X1.2)
|
||||
| # 6 |
04211-09189-000 0421109189000 0421109189000 |
DOUILLE
PIN
|
||||
| # 7 |
11351-22H00-000 1135122H00000 1135122H00000 |
COVER, MAGNETO
|
||||
| # 8 |
11483-48G00-000 1148348G00000 1148348G00000 |
GASKET. MAGNETO COVER
GASKET (5.8X13X1.2) |
||||
| # 9 |
09103-06213-000 0910306213000 0910306213000 |
BOLT
BOLT (6X30) |
||||
| # 10 |
09103-06215-000 0910306215000 0910306215000 |
BOLT
BOLT (6X40) |
||||
| # 11 |
09103-06225-000 0910306225000 0910306225000 |
BOLT, ENG SPRKT COV, L70
BOLT (6X70) |
||||
| # 12 |
09168-06023-000 0916806023000 0916806023000 |
BAGUE DE JOINT 5.8X13X1.2
GASKET (5.8X13X1.2)
|
||||
| # 13 |
04211-09149-000 0421109149000 0421109149000 |
DOUILLE
PIN
|
||||
| # 14 |
11352-22H00-000 1135222H00000 1135222H00000 |
CAP, MAGNETO COVER
|
||||
| # 15 |
09106-06068-000 09106-06076-0000910606068000 |
VIS 6X10MM
BOLT (6X10) |
||||
| # 16 |
09160-06165-000 0916006165000 0916006165000 |
WASHER
WASHER (6.5X10X0.8) |
||||
| # 17 |
09168-16002-000 0916816002000 0916816002000 |
BAGUE DE JOINT 16X22X2
GASKET (16X22X2)
|
||||
| # 18 |
09248-16012-000 0924816012000 0924816012000 |
PLUG, PLGR OUT
PLUG
|
||||
| # 19 |
09259-30005-000 0925930005000 0925930005000 |
CAP
PLUG |
||||
| # 20 |
09280-26006-000 0928026006000 0928026006000 |
JOINT TORIQUE 3.1X26.4
O RING (D:3.1, ID:26.4) |
||||
| # 21 |
11361-22H00-000 1136122H00000 1136122H00000 |
COVER, SECONDARY DRIVE
|
||||
| # 22 |
11363-22H00-000 1136322H00000 1136322H00000 |
DAMPER, SEC DRIVE COVER
|
||||
| # 23 |
11372-22H00-000 1137222H00000 1137222H00000 |
BOLT
|
||||
| # 24 |
09139-06028-000 0913906028000 0913906028000 |
VIS 6X20MM
SCREW (6X20)
|
||||
| # 25 |
09169-06062-000 0916906062000 0916906062000 |
DOUILLE FILETEE 6MM
SPACER
|
||||
| # 26 |
09320-09501-000 0932009501000 0932009501000 |
CUSHION
|
||||
| # 27 |
11362-22H00-000 1136222H00000 1136222H00000 |
COVER, SECONDARY DRIVE NO.2
|
||||
| # 28 |
09139-06120-000 0913906120000 0913906120000 |
VIS LTZ400 K3
SCREW (6X16) |
||||
| # 29 |
09320-08013-000 09320-08509-0000932008013000 |
CUSHION(8X22X7)
CUSHION
|
||||
| # 30 |
68322-48G00-000 6832248G00000 6832248G00000 |
NOTE, ENGINE OIL
|

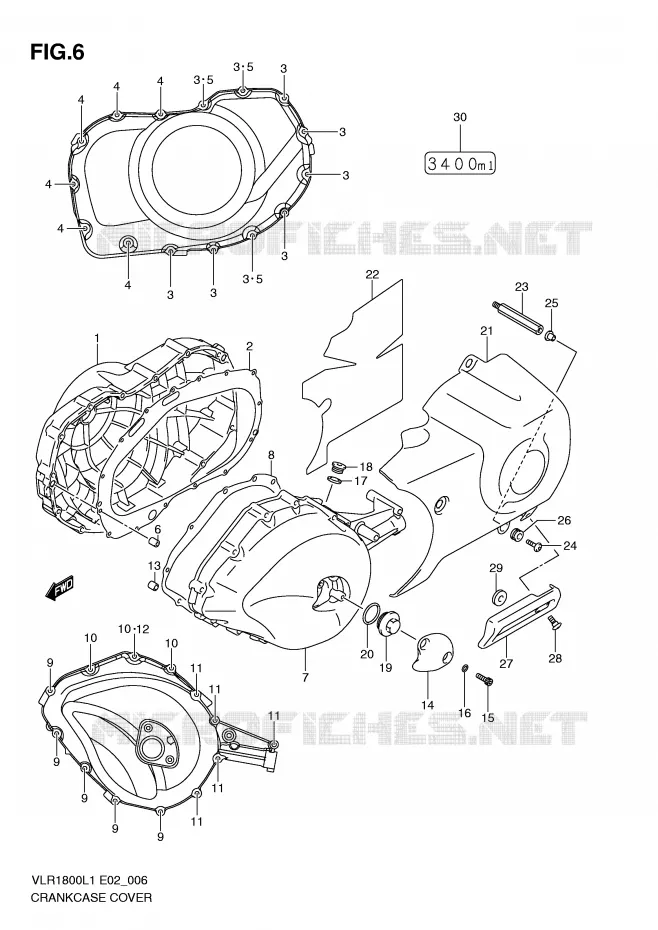

Suzuki INTRUDER
Cilinderinhoud: 1800 cc Jaar: 2011 Model code VLR1800L1(E2)
