| # 1 |
13200-29F30-000 13200-29FG0-0001320029F30000 |

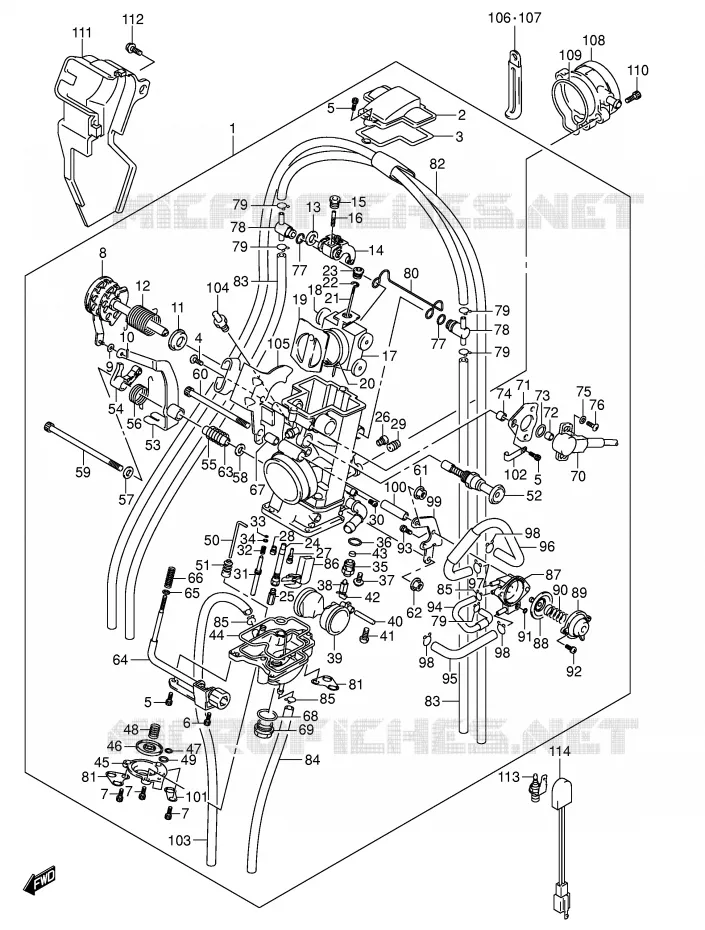

CARBURETOR ASSY
|
||||
| # 1 |
13200-29FJ0-000 1320029FJ0000 1320029FJ0000 |
CARBURETOR ASSY
|
Niet beschikbaar | |||
| # 2 |
13261-29F00-000 1326129F00000 1326129F00000 |
TOP
|
||||
| # 3 |
13266-29F00-000 1326629F00000 1326629F00000 |
TOP WASHER
|
||||
| # 4 |
13612-29F00-000 1361229F00000 1361229F00000 |
VIS 4X8MM
BOLT (4X8) |
||||
| # 5 |
13612-29F10-000 1361229F10000 1361229F10000 |
VIS 4X12MM
BOLT (4X12) |
||||
| # 6 |
13612-29F10-000 1361229F10000 1361229F10000 |
VIS 4X12MM
BOLT (4X12) |
||||
| # 7 |
13612-29F30-000 1361229F30000 1361229F30000 |
BOLT (4X8)
|
||||
| # 8 |
13550-29F00-000 1355029F00000 1355029F00000 |
TRANSMISSION CARBURAT.DR-Z400
SHAFT, THROTTLE |
||||
| # 9 |
13418-29F00-000 1341829F00000 1341829F00000 |
RONDELLE
WASHER |
||||
| # 10 |
13544-29F00-000 1354429F00000 1354429F00000 |
PIN
|
||||
| # 11 |
13574-29F00-000 1357429F00000 1357429F00000 |
COLLAR
|
||||
| # 12 |
13573-29F00-000 1357329F00000 1357329F00000 |
SPRING
|
||||
| # 13 |
13572-29F00-000 1357229F00000 1357229F00000 |
WASHER
|
||||
| # 14 |
13564-29F00-000 1356429F00000 1356429F00000 |
LINK ARM
|
||||
| # 15 |
13607-29F00-000 1360729F00000 1360729F00000 |
NUT
|
||||
| # 16 |
13605-29F00-000 1360529F00000 1360529F00000 |
SCREW
|
||||
| # 17 |
13551-29F00-000 1355129F00000 1355129F00000 |
THROTTLE VALVE
VALVE, THROTTLE |
||||
| # 18 |
13570-29F00-000 1357029F00000 1357029F00000 |
BEARING
|
||||
| # 19 |
13555-29F00-000 1355529F00000 1355529F00000 |
PAPILLON, BOISSEAU DE GAZ DR-Z
VALVE |
||||
| # 20 |
13559-29F00-000 1355929F00000 1355929F00000 |
LIP SEAL
|
||||
| # 21 |
13383-29F00-000 1338329F00000 1338329F00000 |
NEEDLE, JET
|
||||
| # 22 |
13394-29F00-000 1339429F00000 1339429F00000 |
BAR CLIP
|
||||
| # 23 |
13605-29F10-000 1360529F10000 1360529F10000 |
SCREW, NEEDLE SET
|
||||
| # 24 |
13342-29F00-000 1334229F00000 1334229F00000 |
SUPPORT DE GICLEUR, CARBURAT.
MAIN NOZZLE |
||||
| # 25 |
09491-33009-000 0949133009000 0949133009000 |
GICLEUR PRINCIPALE 165
JET, MAIN (165) |
||||
| # 26 |
09491-40014-000 0949140014000 0949140014000 |
JET, MAIN AIR (200)
|
||||
| # 27 |
09492-45038-000 0949245038000 0949245038000 |
JET, SLOW (45)
|
||||
| # 28 |
09492-65009-000 0949265009000 0949265009000 |
JET, STARTER (65)
|
||||
| # 29 |
09491-60012-000 0949160012000 0949160012000 |
CHOKE/GICLEUR D'AIR (60) DR-Z
JET, SLOW AIR (60) |
||||
| # 30 |
09493-90009-000 0949390009000 0949390009000 |
JET, AIR (90)
|
||||
| # 31 |
13279-29F00-000 1327929F00000 1327929F00000 |
SCREW, ADJUST
SCREW, ADJUST (1, 1/2) |
||||
| # 32 |
13271-29F00-000 1327129F00000 1327129F00000 |
SPRING
|
||||
| # 33 |
13295-26E00-000 1329526E00000 1329526E00000 |
O RING
|
||||
| # 34 |
13291-26E00-000 1329126E00000 1329126E00000 |
WASHER
|
||||
| # 35 |
13371-29F00-000 1337129F00000 1337129F00000 |
SIEGE DE POINTEAU
VALVE SET |
||||
| # 36 |
13374-29F00-000 1337429F00000 1337429F00000 |
O RING
|
||||
| # 37 |
13601-29F00-000 1360129F00000 1360129F00000 |
SCREW
|
||||
| # 38 |
13370-29F00-000 1337029F00000 1337029F00000 |
POINTEAU
VALVE, FLOAT |
||||
| # 39 |
13250-29F00-000 1325029F00000 1325029F00000 |
FLOAT
|
||||
| # 40 |
13254-26E00-000 1325426E00000 1325426E00000 |
PIN, FLOAT
PIN |
||||
| # 41 |
13602-43E00-000 13602-43E00-0001360243E00000 |
SCREW
|
||||
| # 42 |
13375-26E00-000 1337526E00000 1337526E00000 |
CLIP
|
||||
| # 43 |
15165-24F00-000 1516524F00000 1516524F00000 |
SCREEN
STRAINER |
||||
| # 44 |
13251-29F00-000 1325129F00000 1325129F00000 |
JOINT CARTER DE FLOTTEUR DR-Z
PACKING |
||||
| # 45 |
13488-29F00-000 1348829F00000 1348829F00000 |
COUVERCLE DE RESSORT, CARBU
COVER |
||||
| # 46 |
13491-29F00-000 1349129F00000 1349129F00000 |
DIAPHRAGME DR-Z400Y
DIAPHRAGM |
||||
| # 47 |
13497-14F00-000 13497-14F01-0001349714F00000 |
U RING
|
||||
| # 48 |
13494-15F00-000 1349415F00000 1349415F00000 |
SPRING
|
||||
| # 49 |
13673-26E10-000 1367326E10000 1367326E10000 |
JOINT TORIQUE
O RING
|
||||
| # 50 |
13487-29F00-000 1348729F00000 1348729F00000 |
ROD
|
||||
| # 51 |
13499-29F00-000 13499-29F01-0001349929F00000 |
CAP
|
||||
| # 52 |
13410-29F00-000 1341029F00000 1341029F00000 |
VALVE DE CHOKE COMPLET DR-Z400
VALVE, STARTER |
||||
| # 53 |
13490-29F00-000 1349029F00000 1349029F00000 |
LINK LEVER
|
||||
| # 54 |
13490-29F10-000 1349029F10000 1349029F10000 |
LINK LEVER
|
||||
| # 55 |
13494-29F00-000 1349429F00000 1349429F00000 |
SPRING
|
||||
| # 56 |
13494-29F10-000 1349429F10000 1349429F10000 |
RESSORT
SPRING |
||||
| # 57 |
13615-29F00-000 1361529F00000 1361529F00000 |
WASHER
|
||||
| # 58 |
13582-29F00-000 1358229F00000 1358229F00000 |
COLLAR
|
||||
| # 59 |
13612-29F50-000 1361229F50000 1361229F50000 |
BOLT
|
||||
| # 59 |
13612-29F40-000 1361229F40000 1361229F40000 |
BOLT
|
Niet beschikbaar | |||
| # 60 |
13612-29F50-000 1361229F50000 1361229F50000 |
BOLT
|
||||
| # 60 |
13612-29F40-000 1361229F40000 1361229F40000 |
BOLT
|
Niet beschikbaar | |||
| # 61 |
13607-24F00-000 1360724F00000 1360724F00000 |
NUT
|
||||
| # 62 |
13607-24F00-000 1360724F00000 1360724F00000 |
NUT
|
||||
| # 63 |
13582-29F10-000 1358229F10000 1358229F10000 |
COLLAR
|
||||
| # 64 |
13270-29F00-000 13270-29F01-0001327029F00000 |
SCREW, STOP
|
||||
| # 65 |
13427-26E00-000 1342726E00000 1342726E00000 |
WASHER
|
||||
| # 66 |
13271-26EA0-000 1327126EA0000 1327126EA0000 |
SPRING
|
||||
| # 67 |
13582-29F20-000 1358229F20000 1358229F20000 |
COLLAR
|
||||
| # 68 |
13246-29F00-000 1324629F00000 1324629F00000 |
JOINT TORIQUE, VIS DE VIDANGE
O RING |
||||
| # 69 |
13247-29F00-000 1324729F00000 1324729F00000 |
BOLT
|
||||
| # 70 |
13580-29F00-000 1358029F00000 1358029F00000 |
CAPTEUR DE POS.DU PAP.DE GAZ
SENSOR, THROTTLE |
||||
| # 71 |
13627-29F00-000 1362729F00000 1362729F00000 |
PLATTEAU SUPPORT, CAPTEUR
PLATE |
||||
| # 72 |
13582-24F00-000 1358224F00000 1358224F00000 |
COLLAR
|
||||
| # 73 |
13575-03F00-000 1357503F00000 1357503F00000 |
O RING
|
||||
| # 74 |
13582-29F30-000 1358229F30000 1358229F30000 |
ENTRETOISE,
COLLAR |
||||
| # 75 |
13572-14F00-000 1357214F00000 1357214F00000 |
WASHER
|
||||
| # 76 |
13613-24F00-000 1361324F00000 1361324F00000 |
SCREW
BOLT |
||||
| # 77 |
13673-26E00-000 13673-26E01-0001367326E00000 |
O RING
|
||||
| # 78 |
13687-29F00-000 1368729F00000 1368729F00000 |
JOINT
|
||||
| # 79 |
09401-06101-000 0940106101000 0940106101000 |
CLIPS
CLIP
|
||||
| # 80 |
13692-29F00-000 1369229F00000 1369229F00000 |
CLIP
|
||||
| # 81 |
13693-36E00-000 1369336E00000 1369336E00000 |
GUIDE DE TUYAU A ESSENCE
BINDER |
||||
| # 82 |
13680-29F30-000 1368029F30000 1368029F30000 |
PIPE
|
||||
| # 82 |
13680-29F00-000 1368029F00000 1368029F00000 |
PIPE
|
Niet beschikbaar | |||
| # 83 |
13686-29F00-000 13686-29F01-0001368629F00000 |
PIPE
|
||||
| # 84 |
13684-29F00-000 1368429F00000 1368429F00000 |
PIPE, RUBBER
|
||||
| # 85 |
09401-05402-000 09401-05402-XC00940105402000 |
CLIP
|
||||
| # 86 |
13257-29F00-000 1325729F00000 1325729F00000 |
PLATE
|
||||
| # 87 |
13484-29F00-000 1348429F00000 1348429F00000 |
DIAPHRAGM BODY
BODY, DIAPHRAGM |
||||
| # 88 |
13480-29F00-000 1348029F00000 1348029F00000 |
DIAPHRAGM
|
||||
| # 89 |
13484-29F10-000 1348429F10000 1348429F10000 |
COVER
|
||||
| # 90 |
13481-29F00-000 1348129F00000 1348129F00000 |
SPRING
|
||||
| # 91 |
13486-15F00-000 13486-15F01-0001348615F00000 |
U RING
|
||||
| # 92 |
13601-15F20-000 1360115F20000 1360115F20000 |
SCREW
|
||||
| # 93 |
02112-34083-000 0211234083000 0211234083000 |
--> 02112-3408A
SCREW |
||||
| # 94 |
13680-29F10-000 13680-29F11-0001368029F10000 |
PIPE, RUBBER
|
||||
| # 95 |
13681-29F00-000 13681-29F01-0001368129F00000 |
PIPE, RUBBER
|
||||
| # 96 |
13680-29F20-000 1368029F20000 1368029F20000 |
PIPE, RUBBER
|
||||
| # 97 |
09401-07101-000 0940107101000 0940107101000 |
CLIP
|
||||
| # 98 |
13671-29F00-000 1367129F00000 1367129F00000 |
CIRCLIP DE TUYAU
CLIP |
||||
| # 99 |
13628-29F00-000 1362829F00000 1362829F00000 |
PLATE, STAY
|
||||
| # 100 |
13582-29F40-000 1358229F40000 1358229F40000 |
COLLAR
|
||||
| # 101 |
13693-28E00-000 1369328E00000 1369328E00000 |
GUIDE DE TUYAU A ESSENCE
BINDER |
||||
| # 102 |
13432-29F00-000 1343229F00000 1343229F00000 |
BINDER
|
||||
| # 103 |
13683-29F00-000 1368329F00000 1368329F00000 |
PIPE
|
||||
| # 104 |
13296-29F00-000 1329629F00000 1329629F00000 |
SCREW, STOP
|
||||
| # 105 |
13621-29F00-000 13311-29F10-0001362129F00000 |
COVER, CARBURETOR
PLATE, STAY |
||||
| # 105 |
13621-29F00-000 13621-29F10-0001362129F00000 |
COVER, CARBURETOR
PLATE, STAY PLATE STAY |
||||
| # 106 |
09404-06429-000 09404-06039-0000940406429000 |
CLAMP
CLAMP, L:45
|
||||
| # 107 |
09404-08420-000 0940408420000 0940408420000 |
COURROIE
CLAMP, L:120
|
||||
| # 108 |
13670-29F00-000 1367029F00000 1367029F00000 |
JOINT COMP, AIR CLEANER
JOINT, AIR CLEANER |
||||
| # 109 |
13278-29F00-000 1327829F00000 1327829F00000 |
0-RING, AIR CLNR JOINT
O RING, AIR CLEANER JOINT |
||||
| # 110 |
07130-0512B-000 071300512B000 071300512B000 |
BOLT. SENSOR
BOLT, AIR CLEANER JOINT
|
||||
| # 111 |
13311-29F00-000 13311-29F10-0001331129F00000 |
COVER, CARBURETOR
|
||||
| # 112 |
63161-43E00-000 09111-06107-0006316143E00000 |
BOLT, 6X12
BOLT, CARBURETOR COVER
|
||||
| # 113 |
13650-25E01-000 1365025E01000 1365025E01000 |
ELEMENT DE CHAUFFAGE, CARBURAT.15W
HEATER ASSY, CARBURETOR
|
||||
| # 114 |
13655-16F00-000 1365516F00000 1365516F00000 |
THERMO SWITCH COMP, CARB HEATE
SWITCH, CARB HEATER THERMO |
