| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|

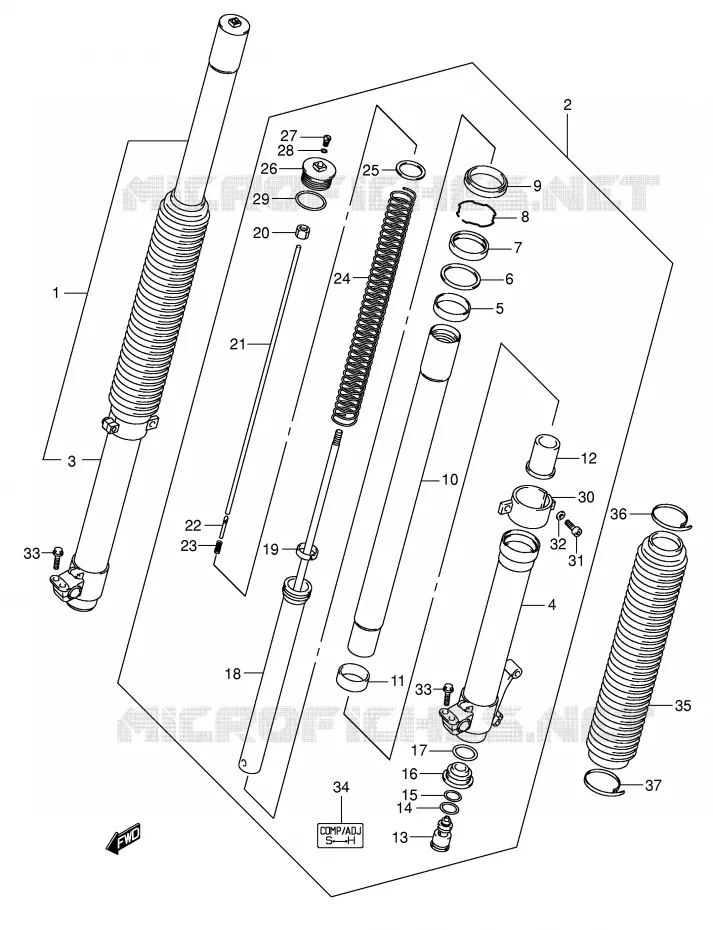

| # 1 |
51103-29F00-000 5110329F00000 5110329F00000 |
RH FR FORK DAMPER ASSY
DAMPER ASSY, FRONT FORK RH |
||||
| # 1 |
51103-29F50-000 5110329F50000 5110329F50000 |
DAMPER ASSY, FRONT FORK RH
|
Niet beschikbaar | |||
| # 2 |
51104-29F00-000 5110429F00000 5110429F00000 |
LH FR FORK DAMPER ASSY
DAMPER ASSY, FRONT FORK LH |
||||
| # 2 |
51104-29F50-000 5110429F50000 5110429F50000 |
DAMPER ASSY, FRONT FORK LH
|
Niet beschikbaar | |||
| # 3 |
51130-29F00-000 5113029F00000 5113029F00000 |
RH OUTER TUBE
TUBE, OUTER RH |
||||
| # 4 |
51140-29F00-000 5114029F00000 5114029F00000 |
LH OUTER TUBE
TUBE, OUTER LH |
||||
| # 5 |
51167-36E80-000 5116736E80000 5116736E80000 |
GUIDE BUSH
BUSH, GUIDE |
||||
| # 6 |
51158-36E00-000 5115836E00000 5115836E00000 |
ANNEAU ENTRETOISE, SIMMER
SPACER, SEAL |
||||
| # 7 |
51153-36E00-000 5115336E00000 5115336E00000 |
SIMMER DE FOURCHE RM125/250T, V
SEAL, OIL |
||||
| # 8 |
51156-36E00-000 5115636E00000 5115636E00000 |
ANNEAU DE RETENUE
RING, STOPPER |
||||
| # 9 |
51173-36E00-000 5117336E00000 5117336E00000 |
BAGUE POUSSIERE, FOURCHE RM-T, V
SEAL, DUST |
||||
| # 10 |
51110-29F00-000 5111029F00000 5111029F00000 |
FORK INNER TUBE
TUBE, INNER |
||||
| # 11 |
51121-36E40-000 5112136E40000 5112136E40000 |
SLIDE BUSH
BUSH, SLIDE |
||||
| # 12 |
51195-29F00-000 5119529F00000 5119529F00000 |
OIL LOCK PIECE
PIECE, OIL LOCK |
||||
| # 13 |
51170-29F00-000 5117029F00000 5117029F00000 |
BOLT
BOLT, CENTER |
||||
| # 14 |
51175-29F00-000 5117529F00000 5117529F00000 |
O RING
|
||||
| # 15 |
51174-29F00-000 5117429F00000 5117429F00000 |
O RING
|
||||
| # 16 |
51205-29F00-000 5120529F00000 5120529F00000 |
PLATE
PLATE, END |
||||
| # 17 |
51117-27C40-000 5111727C40000 5111727C40000 |
JOINT TORIQUE
O RING |
||||
| # 18 |
51190-29F00-000 5119029F00000 5119029F00000 |
ROD
ROD, FRONT DAMPER |
||||
| # 19 |
51122-29F00-000 5112229F00000 5112229F00000 |
BUSH
BUSH, SLIDE |
||||
| # 20 |
51827-33E00-000 5182733E00000 5182733E00000 |
ECROU
NUT
|
||||
| # 21 |
51191-29F00-000 5119129F00000 5119129F00000 |
ROD
ROD, PUSH |
||||
| # 22 |
51192-05D80-000 5119205D80000 5119205D80000 |
NEEDLE
|
||||
| # 23 |
51193-28E00-000 5119328E00000 5119328E00000 |
RESSORT, TIGE DE PRESSION
SPRING, PUSH ROD |
||||
| # 24 |
51171-29F00-000 5117129F00000 5117129F00000 |
FR SPRING 4, 3N/MM
SPRING, FRONT |
||||
| # 25 |
51192-36E00-000 5119236E00000 5119236E00000 |
ENTRETOISE, RESSORT AVANT
JOINT, SPRING |
||||
| # 26 |
51351-29F00-000 5135129F00000 5135129F00000 |
BOLT
BOLT, FORK |
||||
| # 27 |
51357-28E30-000 5135728E30000 5135728E30000 |
VIS
BOLT, PLUG |
||||
| # 28 |
51358-28E30-000 5135828E30000 5135828E30000 |
JOINT TORIQUE
O RING, PLUG |
||||
| # 29 |
51117-36E00-000 5111736E00000 5111736E00000 |
JOINT TORIQUE, VIS DE FOURCHE
O RING |
||||
| # 30 |
51203-29F00-000 5120329F00000 5120329F00000 |
HOLDER
HOLDER, BOOT |
||||
| # 31 |
07130-05207-000 0713005207000 0713005207000 |
BOLT
|
||||
| # 32 |
09160-05044-000 0916005044000 0916005044000 |
WASHER
|
||||
| # 33 |
51321-27C40-000 5132127C40000 5132127C40000 |
VIS, SUPPORT DE GUIDON
BOLT |
||||
| # 34 |
51149-29E40-000 5114929E40000 5114929E40000 |
BAGUE
LABEL |
||||
| # 35 |
51571-29F00-019 51571-29F01-0195157129F00019 |
BOOT
BOOT (BLACK) |
||||
| # 36 |
51575-29F00-000 5157529F00000 5157529F00000 |
BAND
BAND, BOOT UPPER |
||||
| # 37 |
51576-29F00-000 5157629F00000 5157629F00000 |
BAND
BAND, BOOT LOWER |
