| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
11300-17848-000 11302-46876-0001130017848000 |
CRANKCASE SET
|
||||
| # 1 |
11302-46893-000 1130246893000 1130246893000 |
CRANKCASE SET
|
Niet beschikbaar | |||
| # 2 |
09206-13004-000 0920613004000 0920613004000 |
DOUILLE 13X22
PIN
|
||||
| # 3 |
04211-09129-000 0421109129000 0421109129000 |
BOULON 9X12
PIN
|
||||
| # 4 |
09103-06163-000 0910306163000 0910306163000 |
VIS 6X105MM
BOLT (6X105)
|
||||
| # 4A |
09103-06067-000 0910306067000 0910306067000 |
VIS 6X105
BOLT (6X105)
|
||||
| # 5 |
09103-09007-000 0910309007000 |
BOLT (9X80)
|
Niet beschikbaar | |||
| # 6 |
09103-09008-000 0910309008000 0910309008000 |
BOLT (9X95)
|
||||
| # 7 |
09103-09009-000 0910309009000 0910309009000 |
VIS 9X105MM
BOLT (9X105) |
||||
| # 8 |
09103-09010-000 0910309010000 0910309010000 |
VIS 9X115MM
BOLT (9X115) |
||||
| # 9 |
09106-09001-000 0910609001000 0910609001000 |
VIS 9X60MM
BOLT (9X60) |
Niet beschikbaar | |||
| # 10 |
07110-06758-000 07130-0675B-0000711006758000 |
.BOLT
|
||||
| # 11 |
07110-08508-000 07130-0850A-0000711008508000 |
BOLT
.BOLT, AXLE HOLDLER RH |
||||
| # 12 |
07110-08608-000 07130-0860B-0000711008608000 |
BOLT
BOLT, REAR RH |
||||
| # 13 |
07130-08803-000 0713008803000 0713008803000 |
07130-08803-000
BOLT |
Niet beschikbaar | |||
| # 14 |
01517-08605-000 01550-0860B-0000151708605000 |
BOLT
.BOLT (8X60) |
||||
| # 15 |
01517-06354-000 01550-0635B-0000151706354000 |
BOLT. CYLINDER HEAD BOLT
.BOLT 6X35 |
||||
| # 16 |
01517-06404-000 01550-0640A-0000151706404000 |
BOLT
.BOLT (6X40) |
||||
| # 17 |
01517-06408-000 01550-06407-0000151706408000 |
VIS 6X40MM
SCREW (6*40) |
||||
| # 17 |
01550-06403-000 01550-0640A-0000155006403000 |
BOLT
|
||||
| # 18 |
01517-06505-000 01550-0650A-0000151706505000 |
.BOLT (6X50)
|
||||
| # 19 |
01517-06655-000 01550-0665A-0000151706655000 |
BOLT (6X65)
BOLT |
||||
| # 20 |
07110-06257-000 07130-06257-0000711006257000 |
BOLT
SCREW |
||||
| # 20 |
07130-06253-000 07130-0625B-0000713006253000 |
BOLT. CL RLSE CYL
BOLT |
||||
| # 21 |
07110-06357-000 07130-0635B-0000711006357000 |
.BOLT
|
||||
| # 22 |
07110-06408-000 07130-06407-0000711006408000 |
BOULON
.BOLT |
||||
| # 22 |
07130-06403-000 07130-0640B-0000713006403000 |
BOLT
|
||||
| # 23 |
09103-06062-000 0910306062000 0910306062000 |
VIS 6X145MM
BOLT (6X145) |
Niet beschikbaar | |||
| # 24 |
07110-06508-000 07130-0650B-0000711006508000 |
.BOLT
|
||||
| # 25 |
07110-06608-000 07130-0660B-0000711006608000 |
.BOLT
|
||||
| # 26 |
09168-06018-000 0916806018000 0916806018000 |
BAGUE DE JOINT
GASKET
|
||||
| # 26A |
09168-10031-000 0916810031000 0916810031000 |
BAGUE DE JOINT 10.2X20X2.3
GASKET
|
||||
| # 27 |
09168-08016-000 0916808016000 0916808016000 |
BAGUE DE JOINT 8.2X14X1
GASKET
|
||||
| # 28 |
09280-04004-000 0928004004000 0928004004000 |
JOINT TORIQUE D: 1.2, ID: 4
O RING (D:1.2, ID:4.0)
|
||||
| # 29 |
09248-18002-000 0924818002000 |
PLUG.M18
PLUG, UPPER |
Niet beschikbaar | |||
| # 30 |
09493-24010-000 0949324010000 0949324010000 |
GICLEUR D'AIR/D'HUILE
JET, OIL GALLERY MISSION L
|
||||
| # 31 |
09493-28012-000 0949328012000 0949328012000 |
JET, OIL GALY MISSION
JET, OIL GALLERY MISSION R
|
||||
| # 32 |
09493-26007-000 0949326007000 0949326007000 |
GICLEUR D'HUILE, REFR. PISTONS
JET, OIL GALLERY PISTON
|
||||
| # 32 |
09493-80008-000 0949380008000 0949380008000 |
GICLEUR D'AIR/D'HUILE
JET, OIL GALLERY PISTON
|
Niet beschikbaar | |||
| # 33 |
09168-10002-000 0916810002000 0916810002000 |
BAGUE DE JOINT 10X14X3.6
GASKET
|
||||
| # 33 |
09168-10007-000 0916810007000 0916810007000 |
BAGUE DE JOINT 10.1X16X1
GASKET
|
||||
| # 34 |
09248-10007-000 0924810007000 0924810007000 |
BOUCHON
PLUG, OIL GALLERY |
||||
| # 34 |
11315-17E00-000 1131517E00000 1131517E00000 |
PLUG, OIL GALLERY
|
Niet beschikbaar | |||
| # 35 |
09168-16002-000 0916816002000 0916816002000 |
BAGUE DE JOINT 16X22X2
GASKET
|
||||
| # 36 |
09248-16010-000 09248-16012-0000924816010000 |
PLUG, PLGR OUT
PLUG, OIL GALLERY |
||||
| # 37 |
09168-06024-000 0916806024000 0916806024000 |
JOINT 5.8X11X1.2
GASKET
|
||||
| # 38 |
09248-22002-000 0924822002000 0924822002000 |
BOUCHON DE VIDANGE
PLUG, LH |
||||
| # 39 |
09168-22002-000 0916822002000 0916822002000 |
BAGUE DE JOINT 22X27X2
GASKET |
||||
| # 40 |
09248-14010-000 0924814010000 0924814010000 |
BOUCHON VIDANGE 14X12MM
PLUG
|
||||
| # 41 |
09168-14002-000 0916814002000 0916814002000 |
BAGUE DE JOINT 13.8X18.8X4.8MM
GASKET
|
||||
| # 42 |
12228-17E00-0D0 1222817E000D0 1222817E000D0 |
FIXATION DE COUSSINET (VERT)
BEARING, THRUST RH (GREEN) |
||||
| # 43 |
12228-17E00-0A0 1222817E000A0 1222817E000A0 |
FIXATION DE COUSSINET (ROUGE)
BEARING, THRUST LH (RED) |
||||
| # 43 |
12228-17E00-0B0 1222817E000B0 1222817E000B0 |
FIXATION DE COUSSINET (NOIR)
BEARING, THRUST LH (BLACK) |
||||
| # 43 |
12228-17E00-0C0 1222817E000C0 1222817E000C0 |
FIXATION DE COUSSINET (BLEU)
BEARING, THRUST LH (BLUE) |
||||
| # 43 |
12228-17E00-0D0 1222817E000D0 1222817E000D0 |
FIXATION DE COUSSINET (VERT)
BEARING, THRUST LH (GREEN) |
||||
| # 43 |
12228-17E00-0E0 1222817E000E0 1222817E000E0 |
FIXATION DE COUSSINET (JAUNE)
BEARING, THRUST LH (YELLOW) |
||||
| # 43 |
12228-17E00-0F0 1222817E000F0 1222817E000F0 |
FIXATION DE COUSSINET (BLANC)
BEARING, THRUST LH (WHITE) |
||||
| # 44 |
09241-37002-000 0924137002000 0924137002000 |
COUVERCLE DE CARTER 37X7
PLUG, CRANKCASE LH |
||||
| # 45 |
09103-10274-000 0910310274000 0910310274000 |
BOLT (10X280)
|
Niet beschikbaar | |||
| # 46 |
09103-12045-000 0910312045000 0910312045000 |
BOLT
BOLT (12X140) |
||||
| # 47 |
09159-10058-000 09159-10115-0000915910058000 |
NUT.ENG RH MTG BRKT
NUT |
||||
| # 48 |
08319-31128-000 08319-3112A-0000831931128000 |
NUT
|
||||
| # 49 |
11611-21E00-000 1161121E00000 1161121E00000 |
ENTRETOISE GAUCHE, L=45MM
SPACER, LH (L:45) |
||||
| # 50 |
11611-14210-000 1161114210000 1161114210000 |
ENTRETOISE L=65MM
SPACER, RH (L:65) |

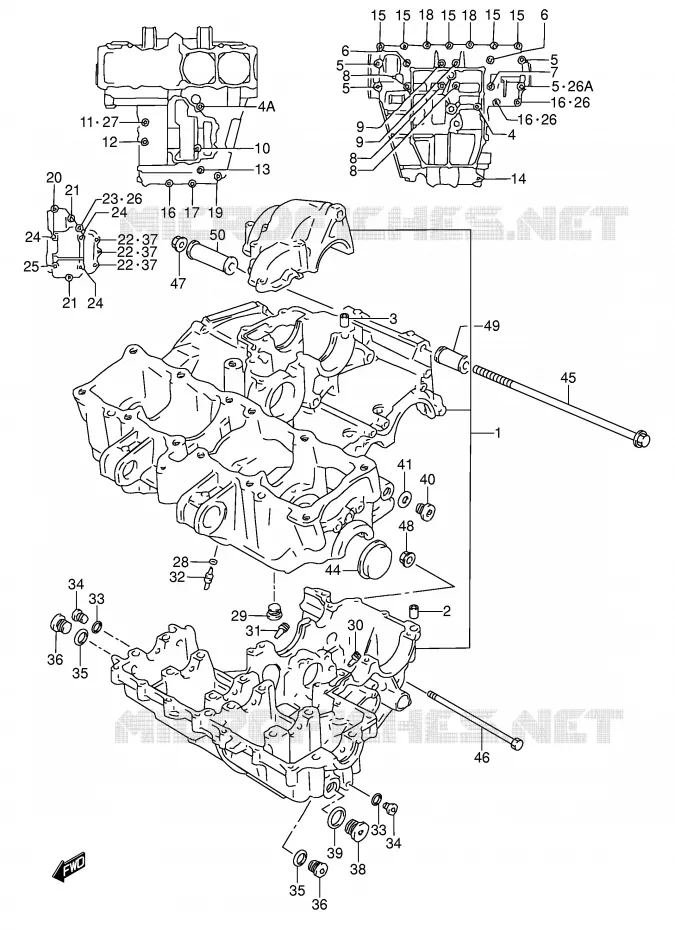

Suzuki RF
Cilinderinhoud: 600 cc Jaar: 1996 Model code RF600RT(E2)
