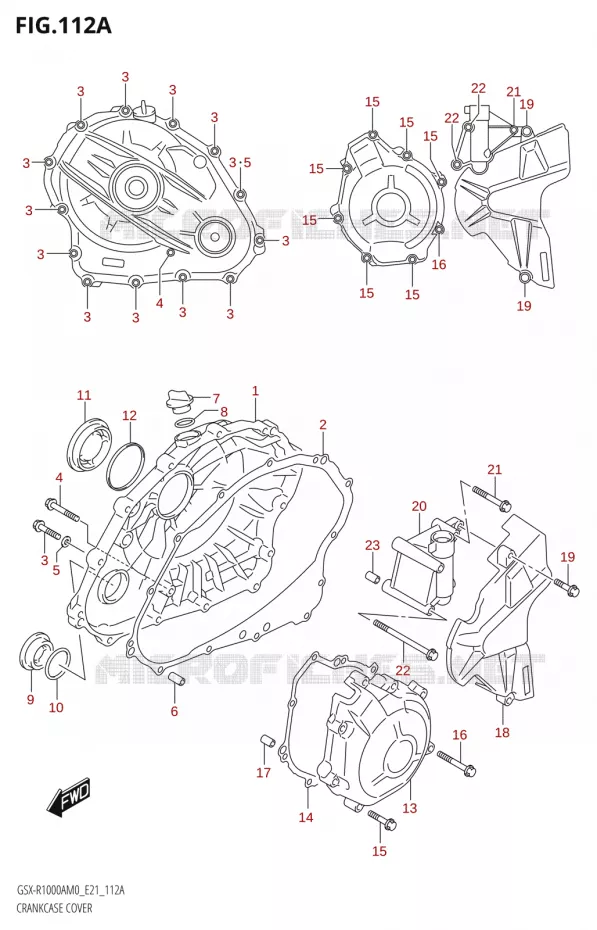

| # 1 |
11341-17K00-000 1134117K00000 1134117K00000 |
COVER, CLUTCH
|
||||
| # 2 |
11482-17K00-000 1148217K00000 1148217K00000 |
GASKET, CLUTCH COVER
|
||||
| # 3 |
09103-06529-000 0910306529000 0910306529000 |
BOLT(L:30)
BOLT, CLUTCH COVER (6X30) |
||||
| # 4 |
09103-06531-000 0910306531000 0910306531000 |
BOLT(L:40)
BOLT, MAGNETO COVER (6X40) |
||||
| # 5 |
09168-06023-000 0916806023000 0916806023000 |
BAGUE DE JOINT 5.8X13X1.2
GASKET (5.8X13X1.2)
|
||||
| # 6 |
04211-09189-000 0421109189000 0421109189000 |
DOUILLE
PIN
|
||||
| # 7 |
11971-25D00-000 1197125D00000 1197125D00000 |
PLUG, ENGINE OIL FILLER
|
||||
| # 8 |
09280-17003-000 0928017003000 0928017003000 |
JOINT TORIQUE 3.1X16.8
O RING (D:3.1, ID:16.8)
|
||||
| # 9 |
09259-36021-000 0925936021000 0925936021000 |
COUVERCLE DE VIS, CACHE MAGNETO
PLUG (36X10)
|
||||
| # 10 |
09280-33004-000 0928033004000 0928033004000 |
JOINT TORIQUE D: 3.1, ID: 32.7
O RING (D:3.1, ID:32.7)
|
||||
| # 11 |
11342-41G10-000 1134241G10000 1134241G10000 |
CAP, CLUTCH RELEASE ADJUST
|
||||
| # 12 |
31156-17E00-000 3115617E00000 3115617E00000 |
JOINT TORIQUE
O-RING (D:2.4, ID:52.6) |
||||
| # 13 |
11351-17K01-000 1135117K01000 1135117K01000 |
COVER, MAGNETO
|
||||
| # 14 |
11483-17K00-000 1148317K00000 1148317K00000 |
GASKET, MAGNETO COVER
|
||||
| # 15 |
09103-06529-000 0910306529000 0910306529000 |
BOLT(L:30)
BOLT, CLUTCH COVER (6X30) |
||||
| # 16 |
09103-06532-000 0910306532000 0910306532000 |
BOLT(6X45)
BOLT, MAGNETO COVER (L:45) |
||||
| # 17 |
04211-09149-000 0421109149000 0421109149000 |
DOUILLE
PIN
|
||||
| # 18 |
11360-17K00-000 1136017K00000 1136017K00000 |
COVER. ENGINE SPROCKET
COVER, ENG SPROCKET |
||||
| # 19 |
01550-0625B-000 015500625B000 015500625B000 |
BOLT
|
||||
| # 20 |
11371-17K00-000 1137117K00000 1137117K00000 |
HOLDER, CLUTCH RELEASE
|
||||
| # 21 |
09103-06532-000 0910306532000 0910306532000 |
BOLT(6X45)
BOLT, MAGNETO COVER (L:45) |
||||
| # 22 |
09103-06547-000 0910306547000 0910306547000 |
BOLT.CL RELEASE HOLDER
BOLT, CL RELEASE HOLDER (L:90) |
||||
| # 23 |
04211-09149-000 0421109149000 0421109149000 |
DOUILLE
PIN
|
Suzuki GSX-R
Cilinderinhoud: 1000 cc Jaar: 2020 Model code GSX-R1000A M0 (E21) Kleur: GSX-R1000A: Metallic Triton Blue (YSF) / Glass Sparkle Black - Metallic Mat Black No.2 (KGL) / Pearl Glacier White - Glass Sparkle Black (AGT)
