| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
17661-37H00-000 1766137H00000 1766137H00000 |
COVER, THERMOSTAT
|
||||
| # 2 |
17670-06G61-000 1767006G61000 1767006G61000 |
THERMOSTAT GSX-R1000/L9, S1000
THERMOSTAT, WATER |
||||
| # 3 |
01547-0620A-000 015470620A000 015470620A000 |
BOLT
|
||||
| # 4 |
17851-17K00-000 1785117K00000 1785117K00000 |
HOSE. RADIATOR INLET
HOSE, RDTR INLET |
||||
| # 5 |
17852-17K00-000 1785217K00000 1785217K00000 |
HOSE. RADIATOR OUTLET
HOSE, RDTR OUTLET |
||||
| # 6 |
17853-17K00-000 1785317K00000 1785317K00000 |
HOSE, CYLINDER INLET
|
||||
| # 7 |
17854-17K00-000 1785417K00000 1785417K00000 |
HOSE, WATER BYPASS
|
||||
| # 8 |
17859-17K00-000 1785917K00000 1785917K00000 |
BRACKET, HOSE GUIDE
|
||||
| # 9 |
17861-17K00-000 1786117K00000 1786117K00000 |
CONNECTOR. CYLINDER INLET
CONNECTOR, CYL WATER INLET |
||||
| # 10 |
09280-28005-000 0928028005000 0928028005000 |
JOINT TORIQUE
O-RING (D:2.4, OD:27.7) |
||||
| # 11 |
09362-09011-000 0936209011000 0936209011000 |
UNION WATER BYPASS HOSE
UNION
|
||||
| # 12 |
09401-12414-000 0940112414000 0940112414000 |
CLIP
CLAMP
|
||||
| # 13 |
09402-35501-000 0940235501000 0940235501000 |
CLAMP, WATER HOSE
CLAMP |
||||
| # 14 |
01547-0616A-000 015470616A000 015470616A000 |
BOLT
|
||||
| # 15 |
01550-0612A-000 015500612A000 015500612A000 |
BOLT
|
||||
| # 16 |
17910-17K00-000 1791017K00000 1791017K00000 |
TANK ASSY, RESERVOIR
|
||||
| # 17 |
17931-31J00-000 1793131J00000 1793131J00000 |
CAP
.CAP, WATER RESERVOIR TANK |
||||
| # 18 |
17981-17K00-000 1798117K00000 1798117K00000 |
HOSE, RESERVOIR TANK INLET
|
||||
| # 19 |
17982-47H10-000 1798247H10000 1798247H10000 |
HOSE. OVER FLOW
HOSE, RSVR TANK OVFL |
||||
| # 20 |
09111-06085-000 0911106085000 0911106085000 |
BOLT
BOLT (6X12) |
||||
| # 21 |
09401-08411-000 0940108411000 |
CLIP
CLIP (ID:8.6)
|
Niet beschikbaar |

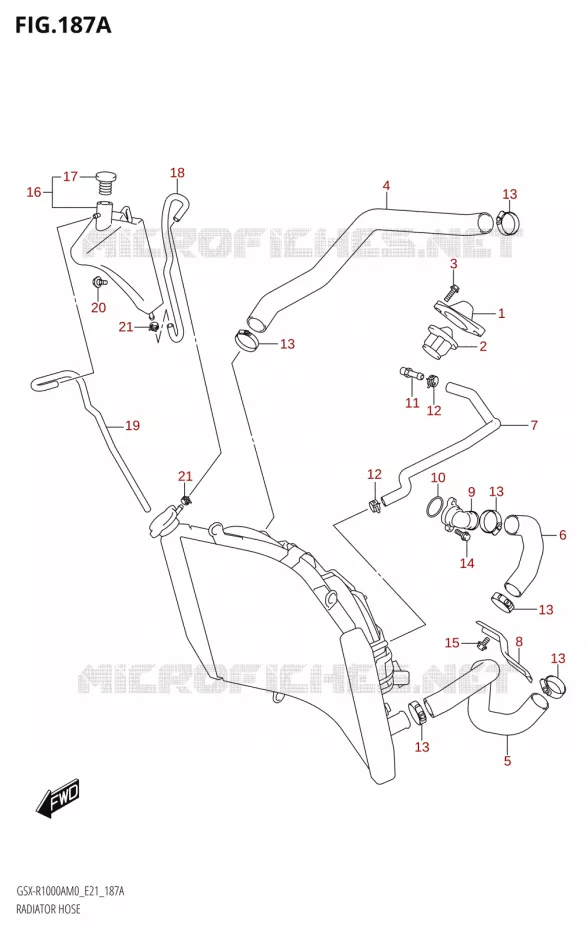

Suzuki GSX-R
Cilinderinhoud: 1000 cc Jaar: 2020 Model code GSX-R1000A M0 (E21) Kleur: GSX-R1000A: Metallic Triton Blue (YSF) / Glass Sparkle Black - Metallic Mat Black No.2 (KGL) / Pearl Glacier White - Glass Sparkle Black (AGT)
