| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
25211-01H11-000 2521101H11000 2521101H11000 |
FORK, GEAR SHIFT NO.1
|
||||
| # 2 |
25231-01H02-000 2523101H02000 2523101H02000 |
FORK, GEAR SHIFT NO.3
|
||||
| # 3 |
25411-38B01-000 2541138B01000 2541138B01000 |
AXE DE FOURCHETTE DE CHANG.VIT
SHAFT, GEAR SHIFT FORK (L:152) |
||||
| # 4 |
09136-06147-000 0913606147000 0913606147000 |
SCREW (6X12)
|
||||
| # 5 |
25310-17K00-000 2531017K00000 2531017K00000 |
CAM, GEAR SHIFT
|
||||
| # 6 |
25312-17K00-000 2531217K00000 2531217K00000 |
BOLT, GEAR SHIFT CAM PLATE
|
||||
| # 7 |
25381-17K00-000 2538117K00000 2538117K00000 |
PLATE, GEAR SHIFT CAM
|
||||
| # 8 |
09136-06147-000 0913606147000 0913606147000 |
SCREW (6X12)
|
||||
| # 9 |
09262-25006-000 0926225006000 0926225006000 |
ROULEMENT A BILLE 25X47X8
BEARING (25X47X8)
|
||||
| # 10 |
09263-25018-000 0926325018000 0926325018000 |
ROULEMENT A AIGUILLE 25X32X12
BEARING (25X32X12)
|
||||
| # 11 |
25350-06G00-000 2535006G00000 2535006G00000 |
SHIFT CAM STOPPER
STOPPER, SHIFT CAM |
||||
| # 12 |
25355-17K00-000 2535517K00000 2535517K00000 |
SPRING. GEAR SHIFT CAM STOPPE
SPRING, GEAR SHIFT CAM STOPPER |
||||
| # 13 |
09111-06041-000 0911106041000 0911106041000 |
BOULON 6X14.3
BOLT (6X14.3)
|
||||
| # 14 |
08211-06141-000 0821106141000 0821106141000 |
RONDELLE DE SURETE
WASHER
|
||||
| # 15 |
25510-17K00-000 2551017K00000 2551017K00000 |
SHAFT, GEAR SHIFT
|
||||
| # 16 |
25512-06G20-000 2551206G20000 2551206G20000 |
PLATE, GEAR SHIFT CAM DRIVE
|
||||
| # 17 |
25518-01H00-000 2551801H00000 2551801H00000 |
SPRING. GEAR SHIFT RETURN
SPRING, GEAR SHIFT PLATE RETURN |
||||
| # 18 |
25519-01H00-000 2551901H00000 2551901H00000 |
PLATE. GEAR SHIFT CAM
WASHER, GEAR SHIFT SHAFT END |
||||
| # 19 |
25671-01011-000 2567101011000 2567101011000 |
STOPPER, GEAR SHIFT ARM
|
||||
| # 20 |
09126-06014-000 0912606014000 0912606014000 |
VIS 6X16MM
SCREW (6X16) |
||||
| # 21 |
09160-14016-000 0916014016000 0916014016000 |
RONDELLE 14X29X0.8
WASHER (14X29X0.8)
|
||||
| # 22 |
09181-14195-000 0918114195000 0918114195000 |
SHIM, 14X24X1.0
SHIM (14X24X1) |
||||
| # 23 |
09263-14027-000 0926314027000 0926314027000 |
ROULEMENT A AIGUILLE 14X20X12
BEARING (14X20X12)
|
||||
| # 24 |
09283-14005-000 09283-14006-0000928314005000 |
SIMMER 14X22X6
SEAL, OIL (14X22X7.3) |
||||
| # 25 |
09444-20001-000 0944420001000 0944420001000 |
RESSORT, AXE DU CHANGEMENT VIT
SPRING
|
||||
| # 26 |
08331-3114A-000 083313114A000 083313114A000 |
CIRCLIP
|
||||
| # 27 |
25520-17K10-000 2552017K10000 2552017K10000 |
ARM, GEAR SHIFT LINK
|
||||
| # 28 |
25525-17K10-000 2552517K10000 2552517K10000 |
ROD.GEAR SHIFT GSX-R1000R/L7
ROD, GEAR SHIFT LINK |
||||
| # 29 |
25600-17K00-000 2560017K00000 2560017K00000 |
LEVER ASSY, GEAR SHIFT
|
||||
| # 30 |
25652-20C00-000 2565220C00000 2565220C00000 |
CAOUTCHOUC LEVIER CHANG. VIT.
.RUBBER, GEAR SHIFT PEDAL
|
||||
| # 31 |
09284-18005-000 0928418005000 0928418005000 |
OIL SEAL (18X24X3.5)
.SEAL, GEAR SHIFT LEVER (18X24X 3.5) |
||||
| # 32 |
09106-08167-000 0910608167000 0910608167000 |
BOLT, BRACKET
BOLT (8X20) |
||||
| # 33 |
09140-06025-000 0914006025000 0914006025000 |
ECROU
NUT
|
||||
| # 34 |
09160-10144-000 0916010144000 0916010144000 |
WASHER (10X30X2.5)
|
Niet beschikbaar | |||
| # 35 |
07120-0625B-000 071200625B000 071200625B000 |
BOLT
|
||||
| # 36 |
09140-06020-000 0914006020000 0914006020000 |
NUT
|
||||
| # 37 |
25617-17K00-000 2561717K00000 2561717K00000 |
SHAFT, GEAR SHIFT LEVER
|
||||
| # 38 |
25681-17K00-000 2568117K00000 2568117K00000 |
BRACKET, GEAR SHIFT LEVER
|
||||
| # 39 |
25619-17K00-000 2561917K00000 2561917K00000 |
WASHER. GEAR SHIFT LEVER LH
WASHER, GEAR SHIFT LEVER, L |
||||
| # 40 |
37730-17K00-000 3773017K00000 3773017K00000 |
SENSOR ASSY, GEAR POSITION
|
||||
| # 41 |
09106-05023-000 0910605023000 0910605023000 |
BOLT
BOLT (5X16) |
||||
| # 42 |
09280-26005-000 0928026005000 0928026005000 |
JOINT TORIQUE D: 2.4, ID: 26.2
O-RING (D:2.4, ID:26.2)
|
||||
| # 43 |
09404-06429-000 09404-06039-0000940406429000 |
CLAMP
CLAMP (L:45)
|
||||
| # 44 |
25501-17810-000 25501-17811-0002550117810000 |
SENSOR & ROD SET
|
||||
| # 45 |
09407-14407-000 0940714407000 0940714407000 |
GUIDE DE CABLE L=145
CLAMP (L:145)
|

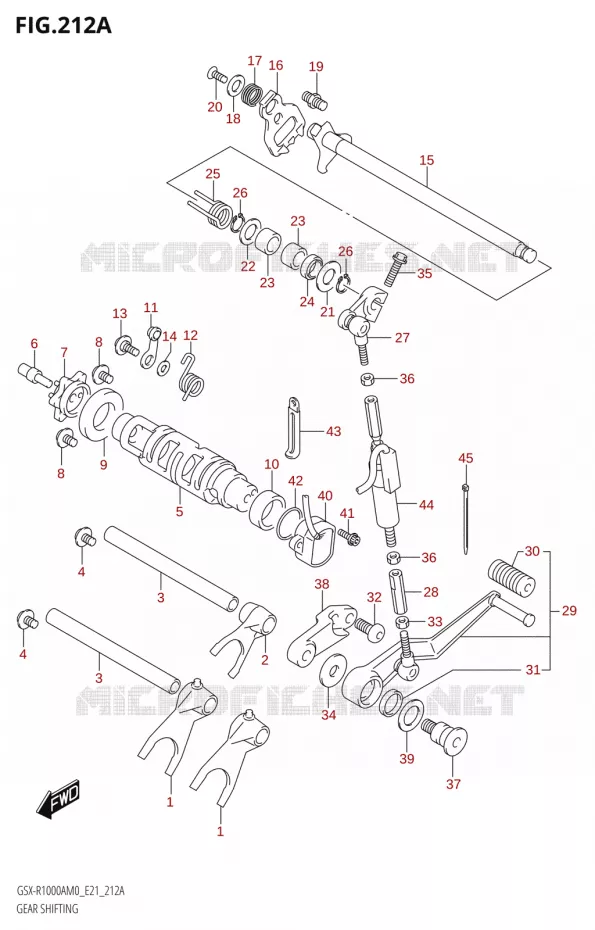

Suzuki GSX-R
Cilinderinhoud: 1000 cc Jaar: 2020 Model code GSX-R1000A M0 (E21) Kleur: GSX-R1000A: Metallic Triton Blue (YSF) / Glass Sparkle Black - Metallic Mat Black No.2 (KGL) / Pearl Glacier White - Glass Sparkle Black (AGT)
